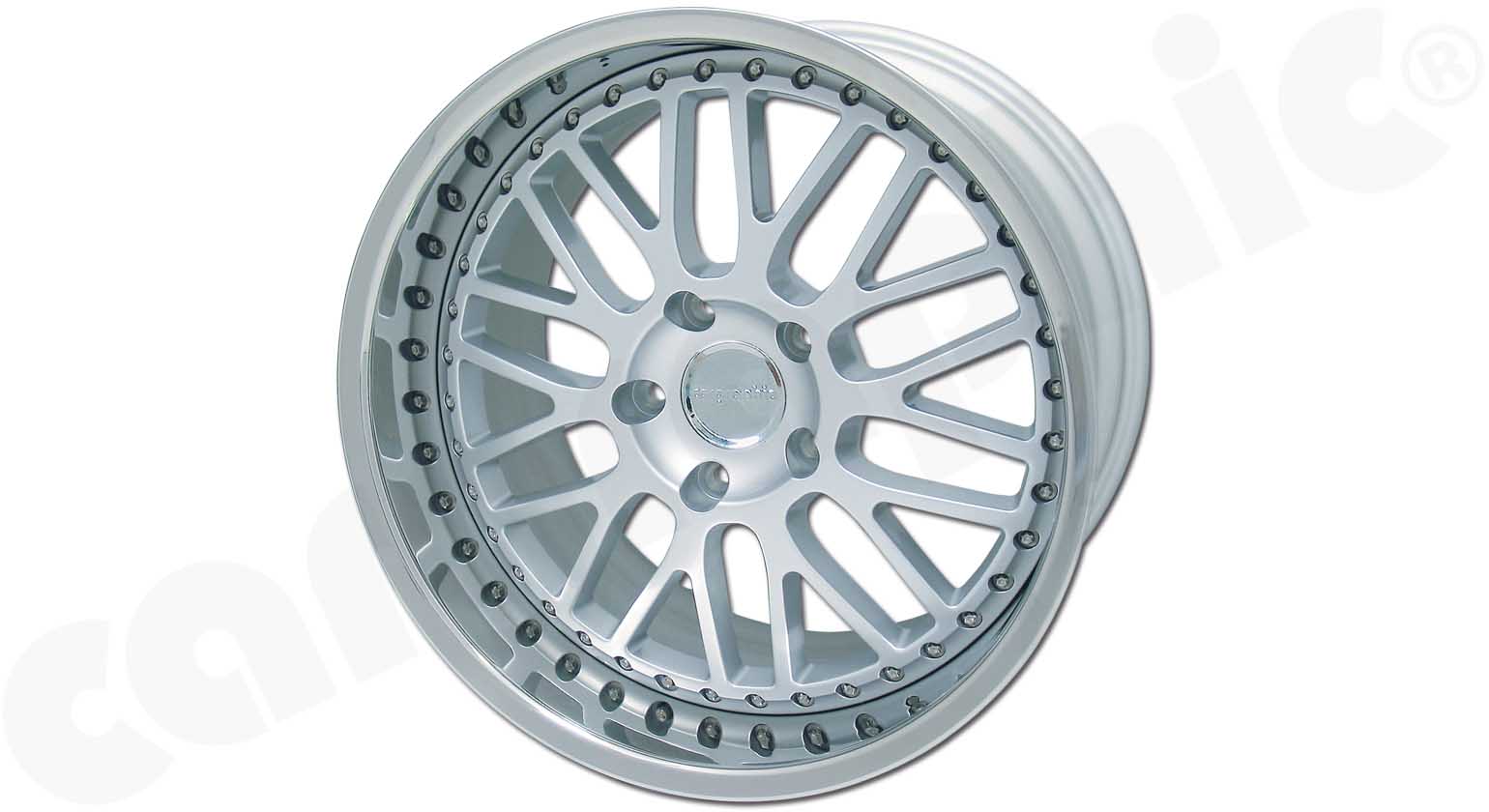

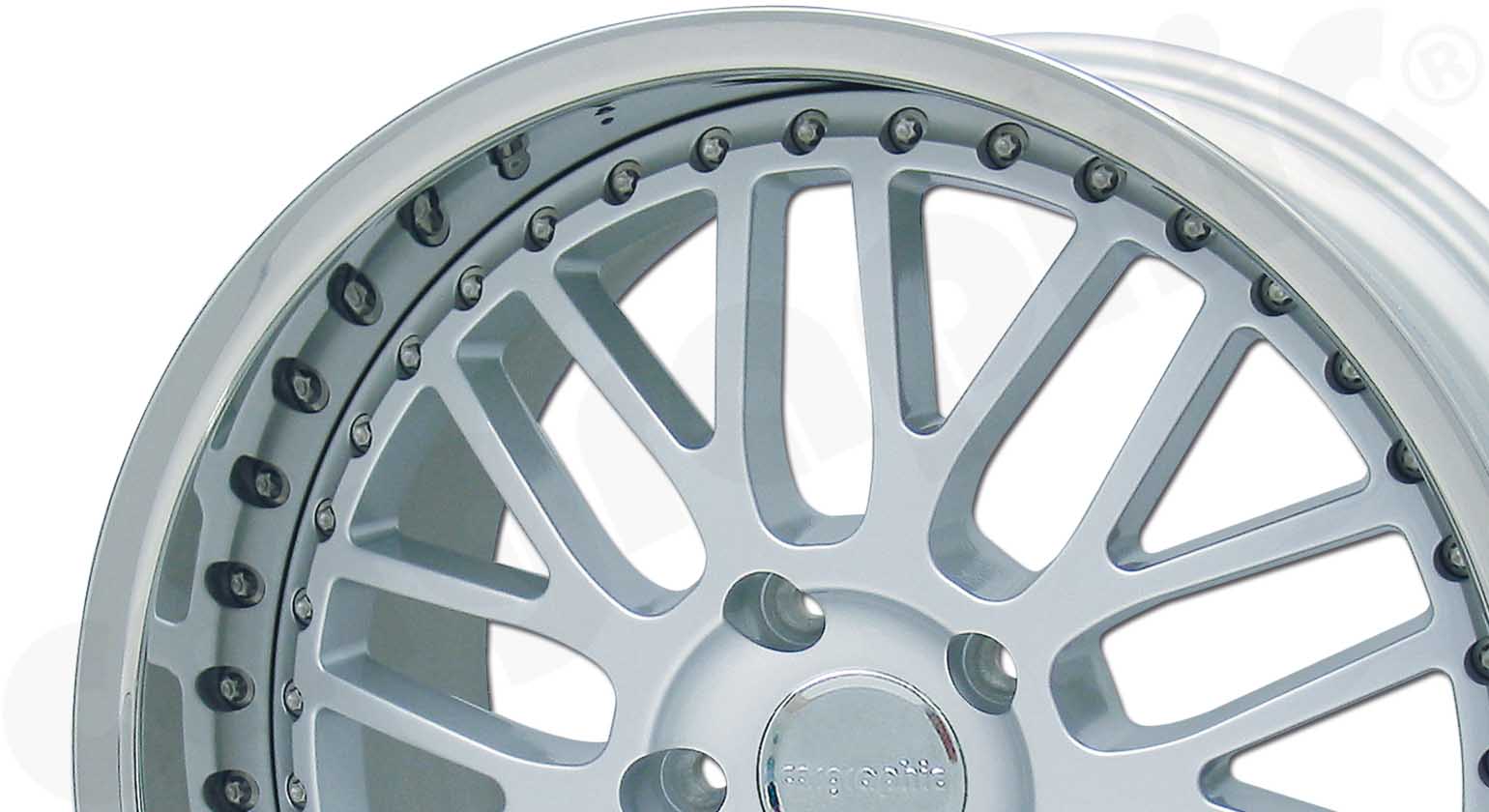

CARGRAPHIC RACING wheel 19 "

POA

CARGRAPHIC RACING wheel 19 “
8.5″ x19 “ET08 to ET69

Product description:
CARGRAPHIC RACING wheel 19 “

Consisting of:

  • 8.5 “x19” CARGRAPHIC RACING wheel

Execution:

  • Stainless steel flat bed outer half , polished to a high gloss
  • Heat -treated cast rim star , silver

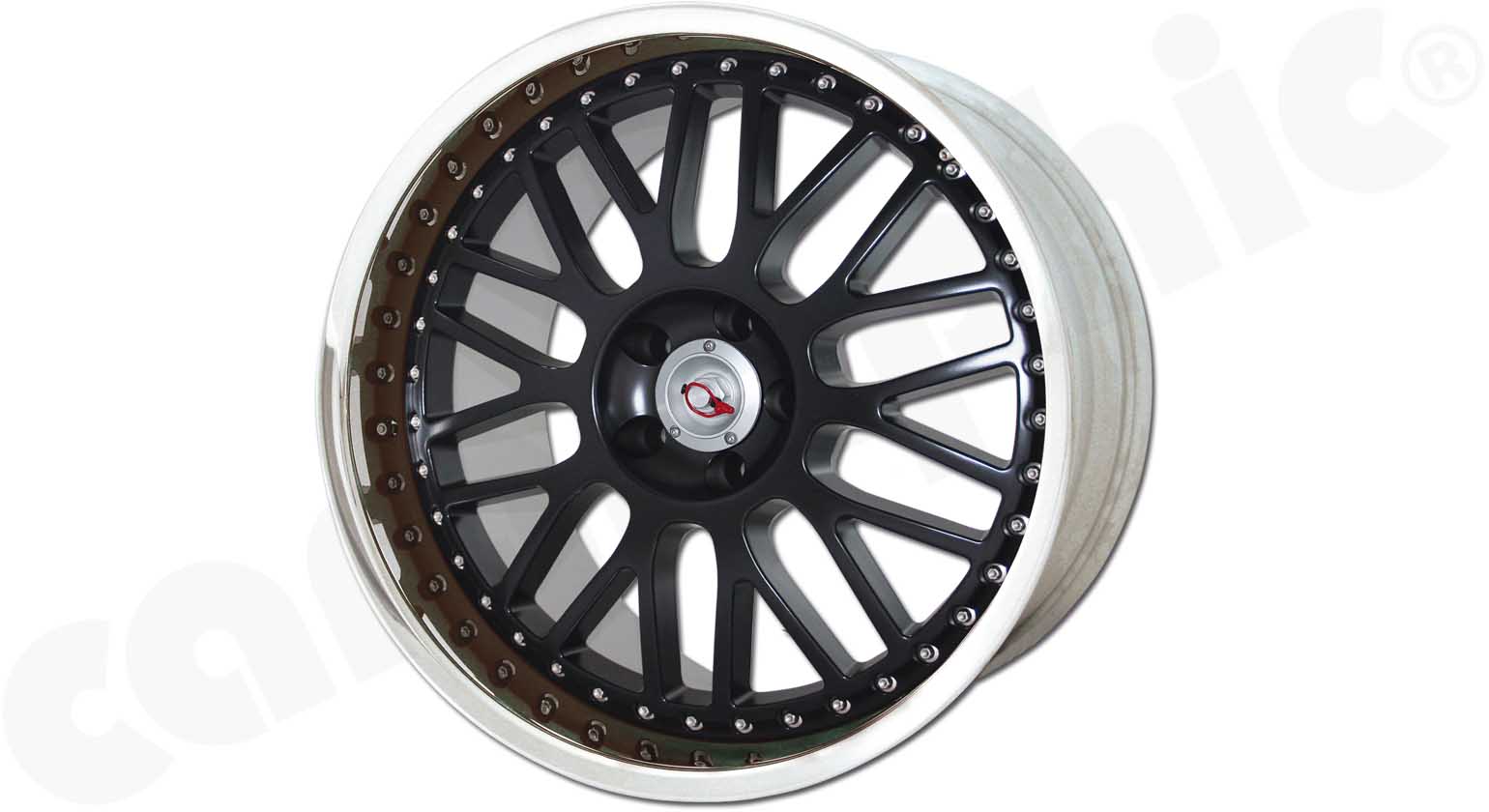

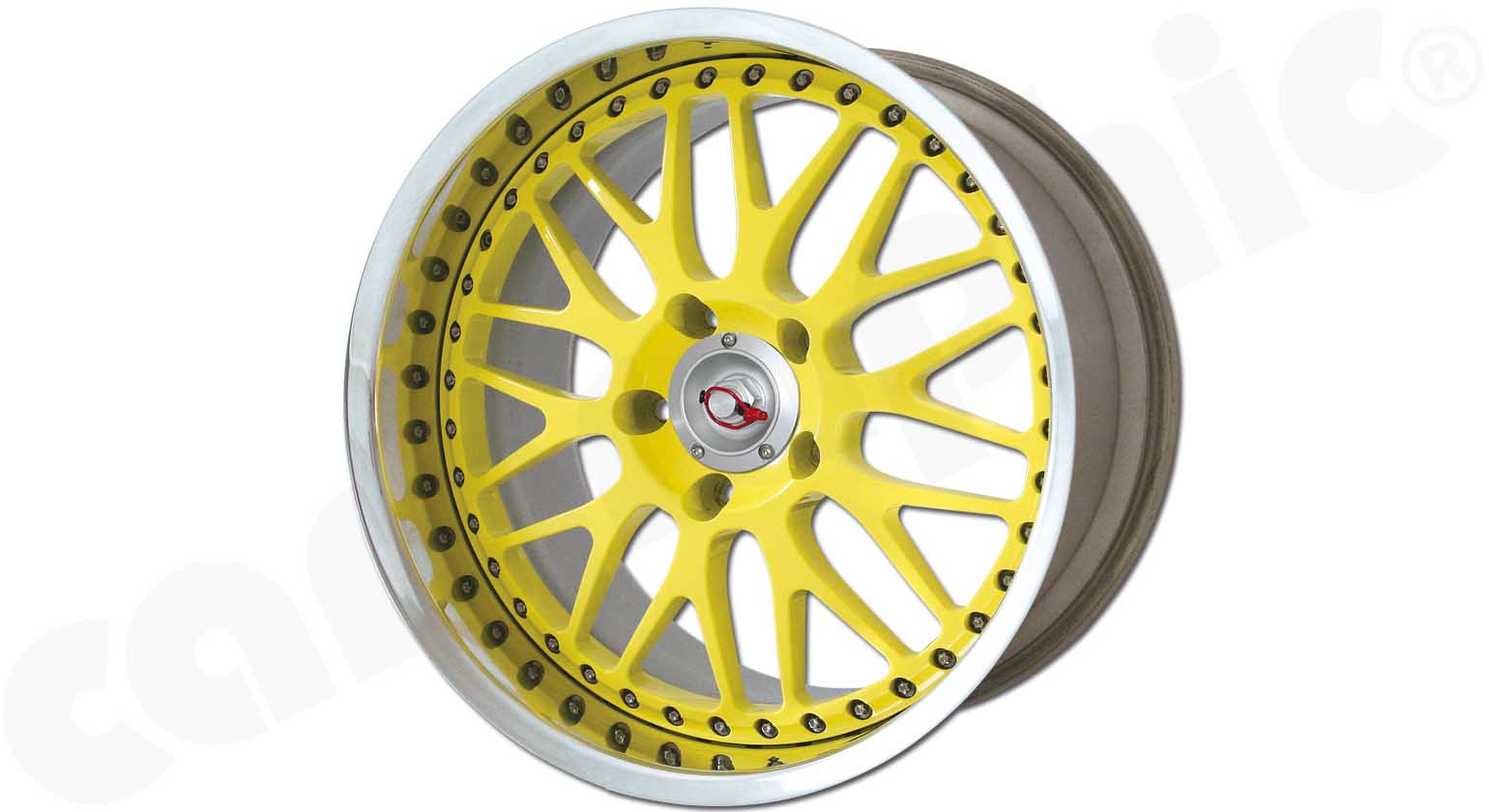

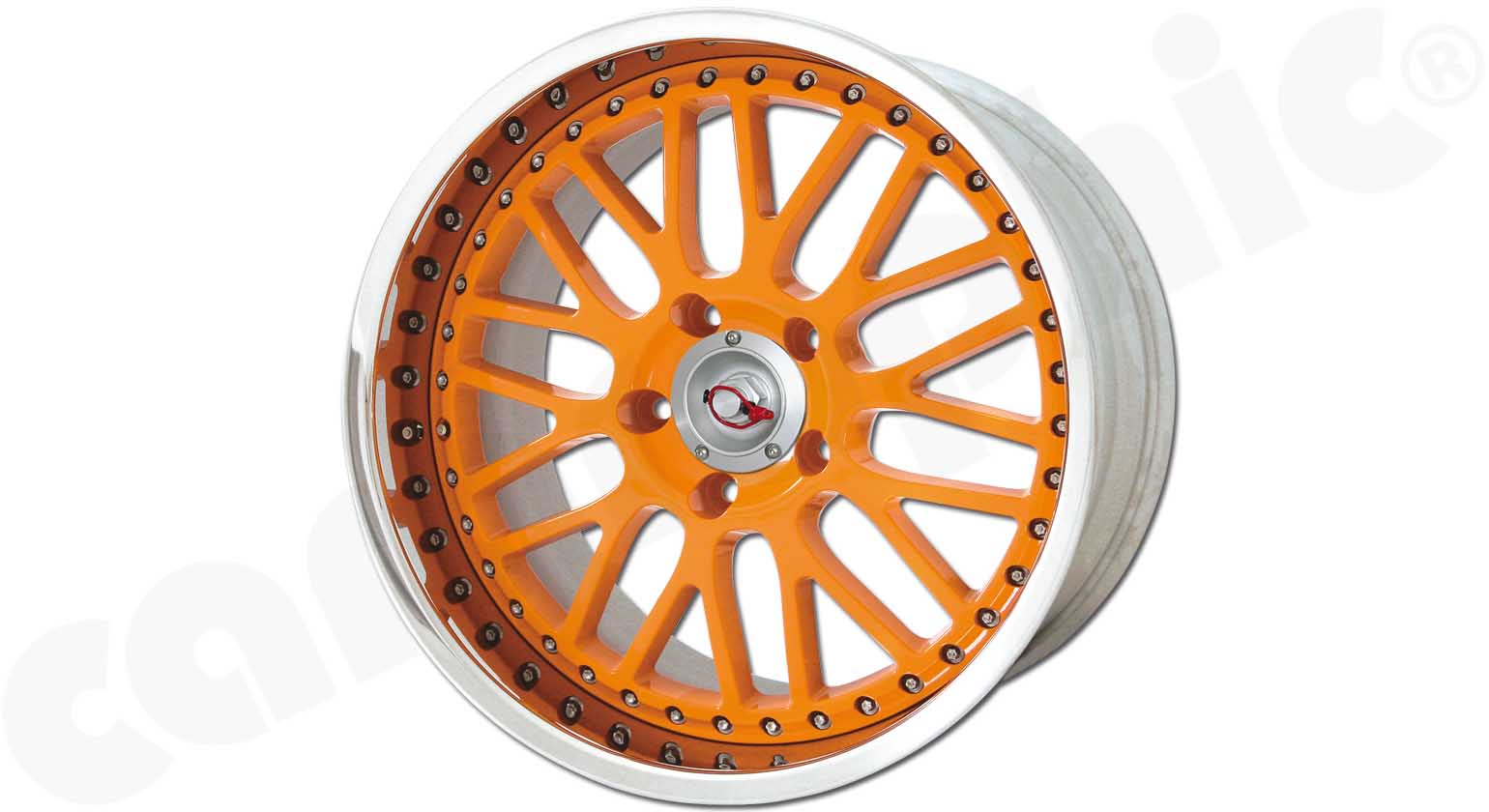

  • Individual color design possible

Possible half and offset (ET) combinations:
Outer half:
 1.25 ” Inner half: 7.25″ Offset : ET47 to ET69 Outer
half: 1.75 ” Inner half: 6.75″ Offset : ET34 to ET56
Outer half: 2.25 ” Inner half: 6.25″ Outer half : ET21 to
ET43 : 2.75 ” inner half: 5.75″ offset: ET08 to ET30

Technical data CARGRAPHIC RACING wheel 19 “inch:

  • 3-part wheel construction
  • 100% Made in Germany
  • Heat-treated cast star
  • Hand-polished stainless steel outer half
  • Individual color design possible
  • Extremely light with a high load capacity (up to 765kg)
  • TÜV strength certificate
  • TÜV parts certificate available for certain models, please inquire
  • Available in bolt circles from 5×100 to 5×130

By using different wheel stars, outer and inner halves, it is possible to perfectly match the CARGRAPHIC RACING wheel to the vehicle.

Attention:
The illustration shown in the picture may contain optionally available accessories or designs.
Unless otherwise stated, the scope of delivery does not include:
Individual color design, TPMS sensors, center hole cover, central locking center hole cover, mounting material.

If you would like more information about this part please click below or call us on 01293 537 911.
