CARGRAPHIC Sport Exhaust System

Product description:

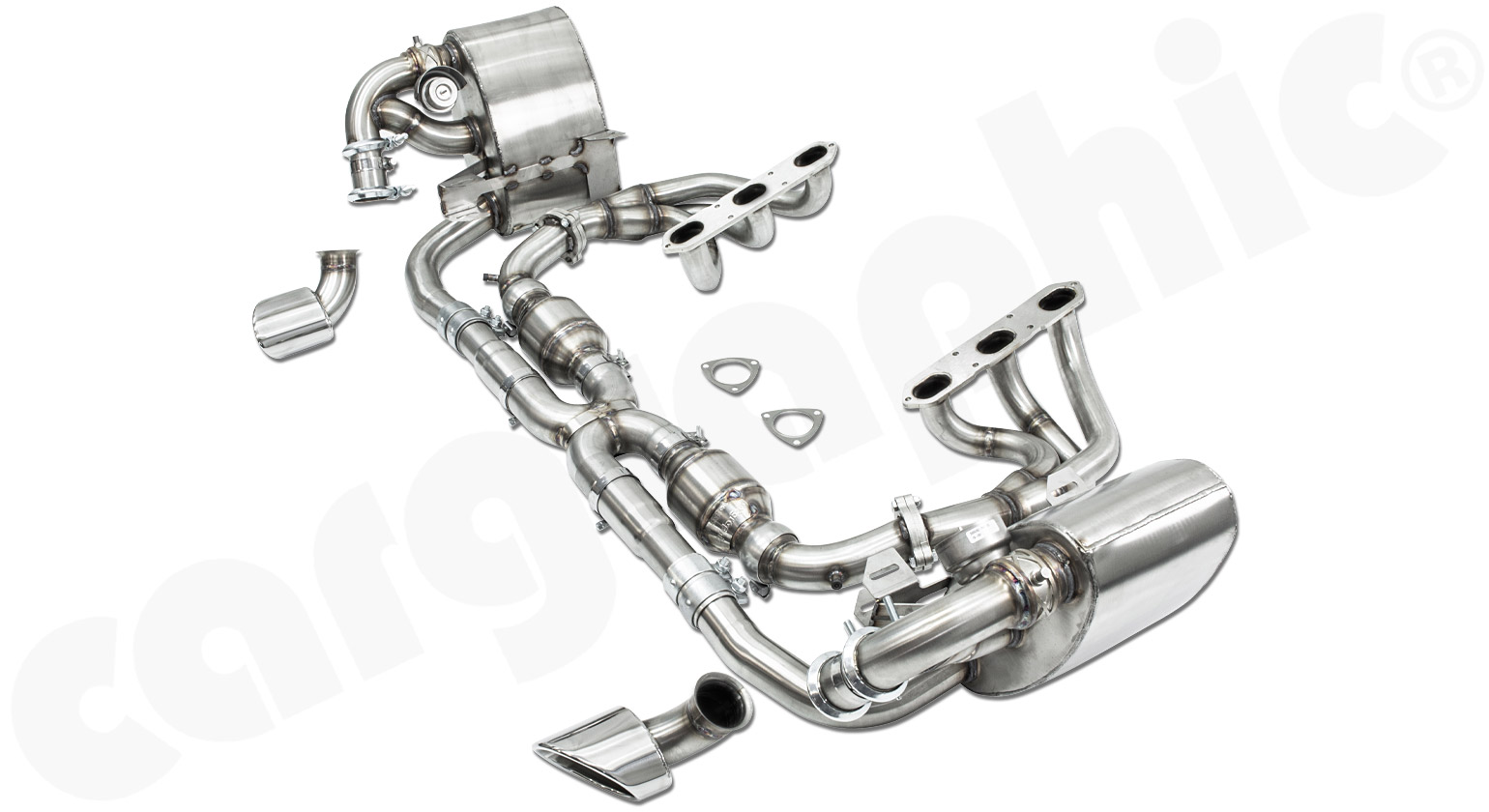

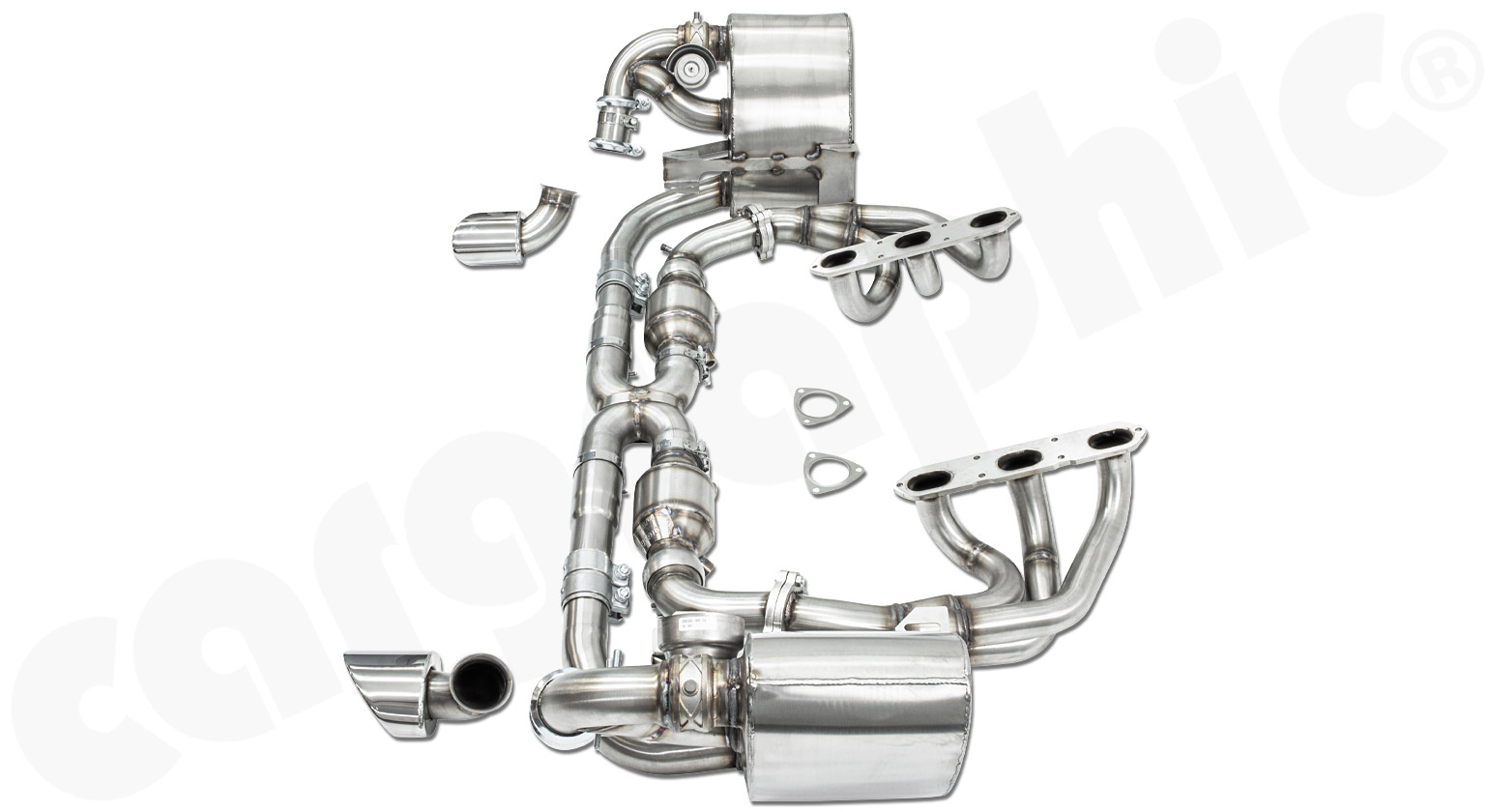

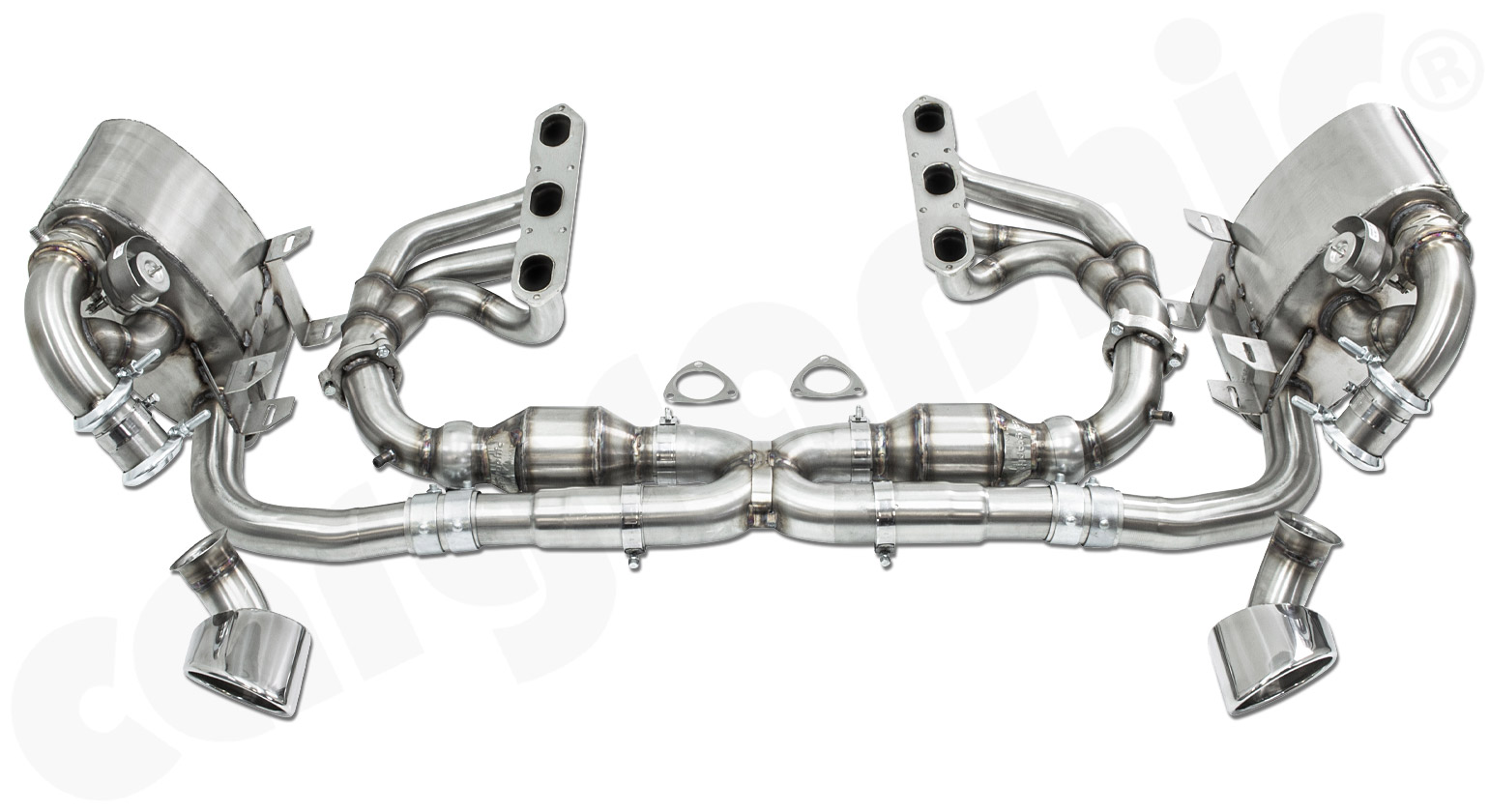

CARGRAPHIC Sport Exhaust System with exhaust valves SS304L

Consisting of:
– CARGRAPHIC new generation long tube manifold set with 1,75" / 45mm primay diameter
– CARGRAPHIC X-pipe with 2x Ø110mm 100cpsi MS catalytic converters
– CARGRAPHIC rear silencer set with 2,5" / 63,50mm exhaust valves pressureless open (PLO)
– CARGRAPHIC sport tailpipes 89x115mm oval – mirror polished
– Fitting kit

NO DRONE OR RESONATION even in combination with other CARGRAPHIC exhaust components fitted.

Motorsportparts for RACING vehicles only
Not road legal
SOUND / SUPER SOUND Version – switchable dual mode:

Valves closed: Quieter tuned enhanced sporty SOUND note, practical pleasant cruising mode

Valves open: Aggressive amplified enhanced SUPER SOUND note, sharper, crisper and volume increasing freer flowing mode

Fits for:
– Porsche 996.1 Carrera 2 / 4 3,4l

Features:
– Absorptive silencer design with CNC mandrel-bent pipework
– Fully made from T-304L lightweight stainless steel
– High performance components, dyno tested
– Olive-/ Bandclamp- and sleeve connections enable easy installation and perfect adjustment
– Reinforced laser-cut brackets
– Reduced backpressure due to freer flowing
– Reduced operating temperature
– Maximized performance
– Improved throttle response, freer revving
– Improved enhanced acoustics with no drone, resonation or vibration
– Model specific tuned sound still in keeping with the Marque
– Weight reduction

PERFORMANCE – Made in Germany
up to 17kW(23PS) more power and 33Nm additional torque

Attention:
Models, equipped with Porsche Sport Exhaust Sytem (PSE) are able to use the factory valve control unit.
All other models require our optional available CARGRAPHIC performance valve control unit.

Porsche 996 Carrera 3.4l models with 4 lambda sensors require either a programming of the engine control unit or instead of the 100 cell motorsport catalytic converters, the version with 2x 200 cpsi HD T-38 tri-metal catalytic converters.

Attention customers USA:
MOTORSPORT/RACE Catalytic converters are solely intended for track and race cars are NOT designed to meet any federal

emissions standards in the USA and are NOT for street or highway use. CARGRAPHIC/HJS products are NOT California Air Resources Board certified and NOT EPA certified and we make no claims these products comply with any emissions laws in any jurisdiction. It is entirely the responsibility of the purchaser to inform themselves of any laws or regulations which may prohibit use of these products.

More information to be found under "About CARGRAPHIC / HJS catalytic converters"

Fitting Service:
Benefit from our fitting service in our modern and hightech workshop. A team of qualified, experienced technicians fulfill all your needs with due skill, care and diligence.
