CARGRAPHIC performance17 rim set

Product description:

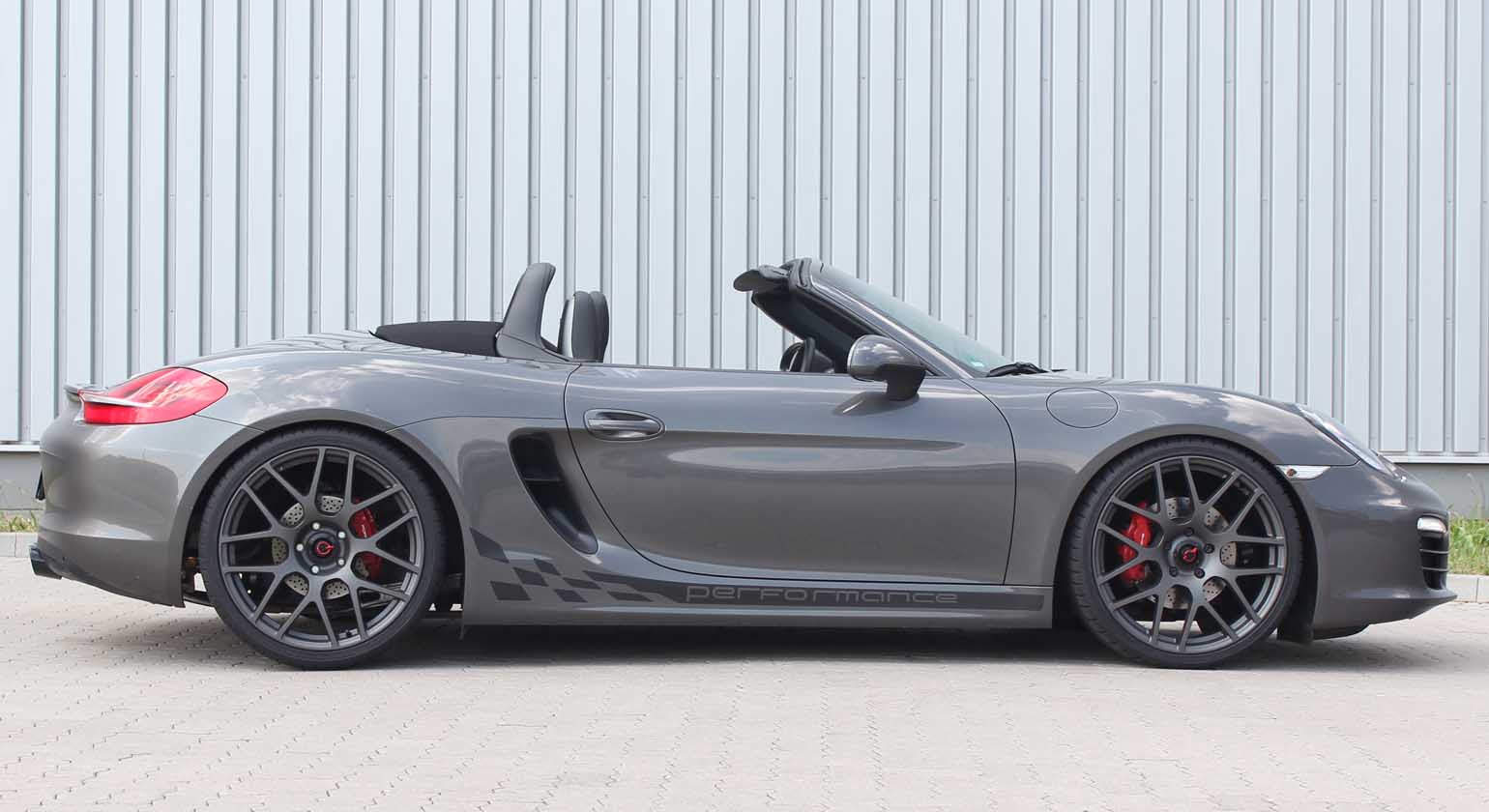

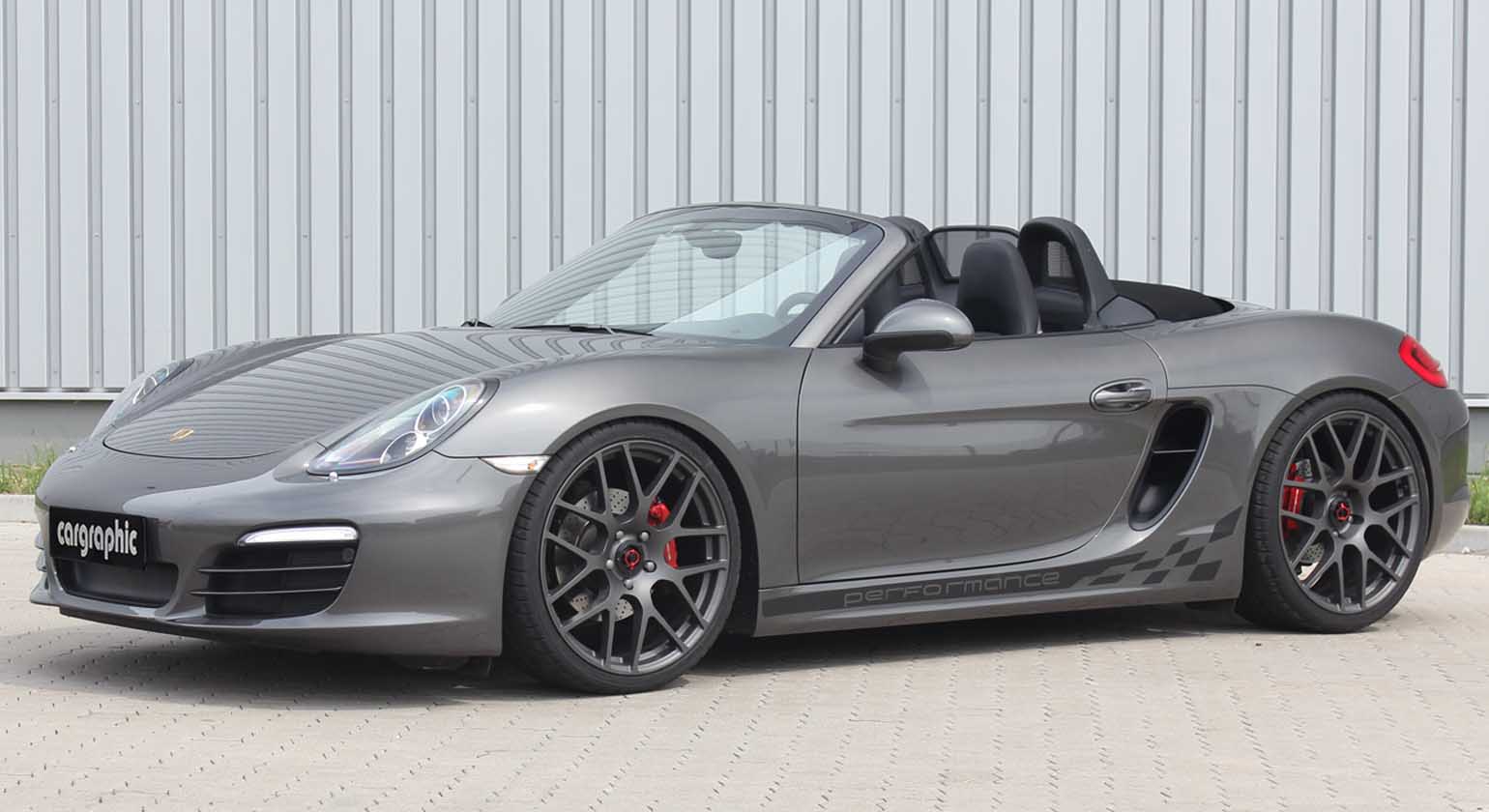

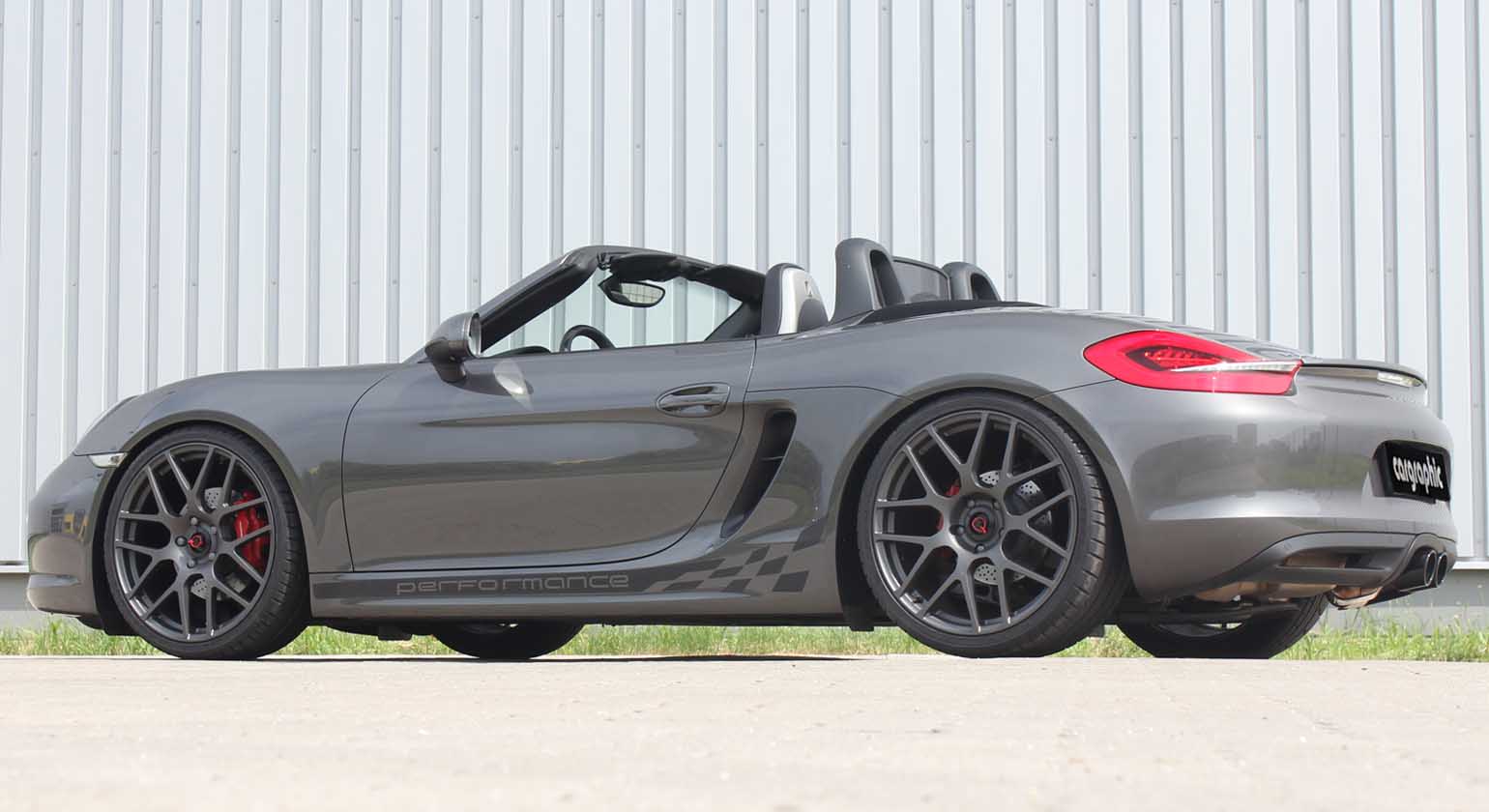

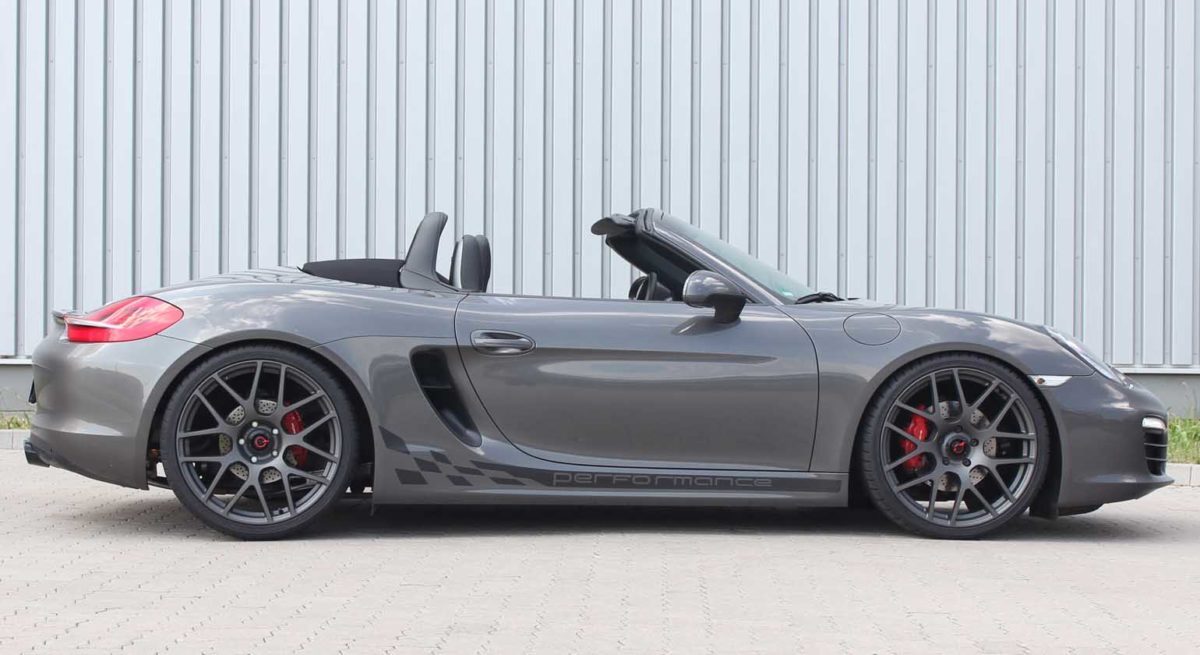

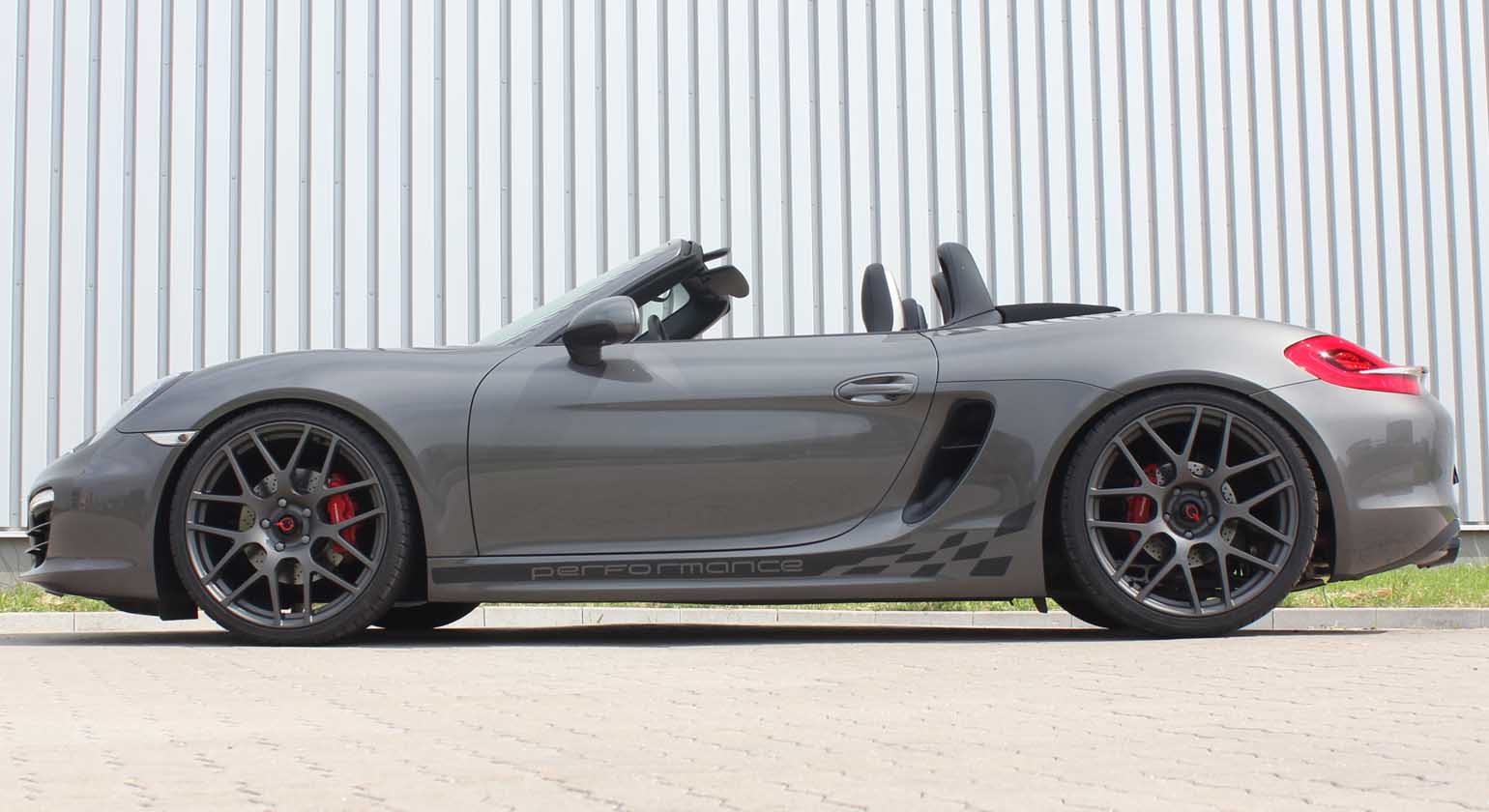

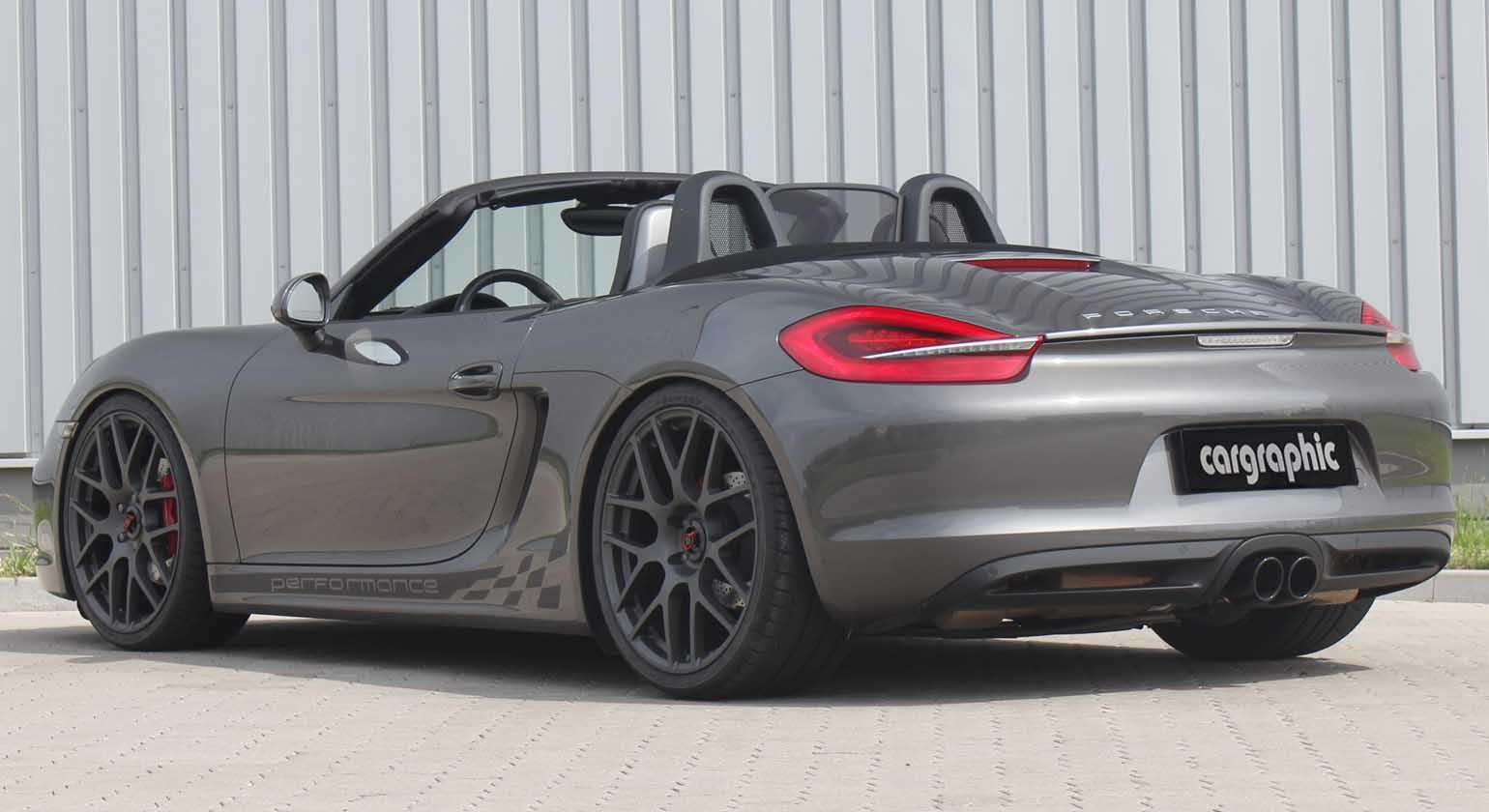

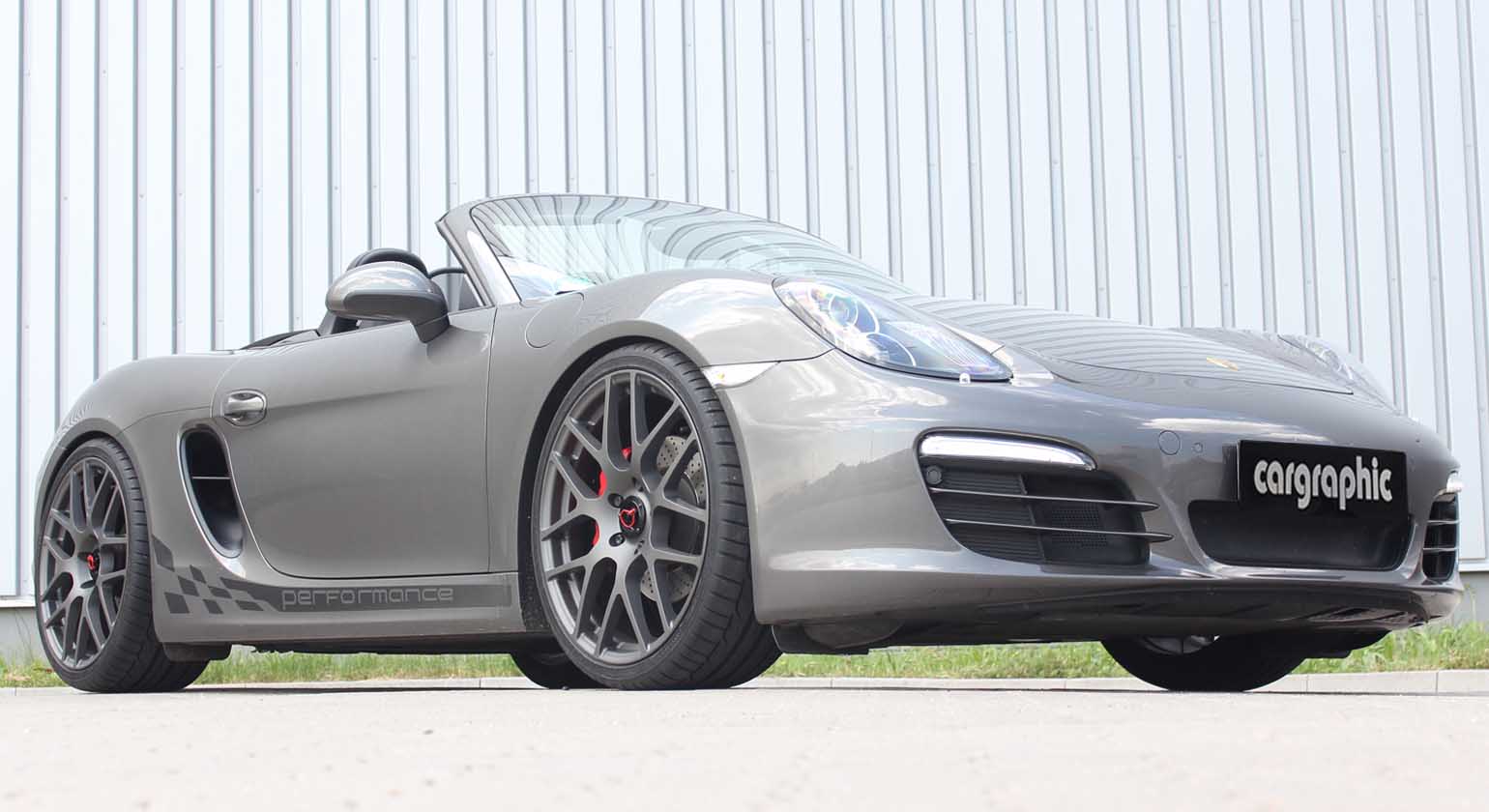

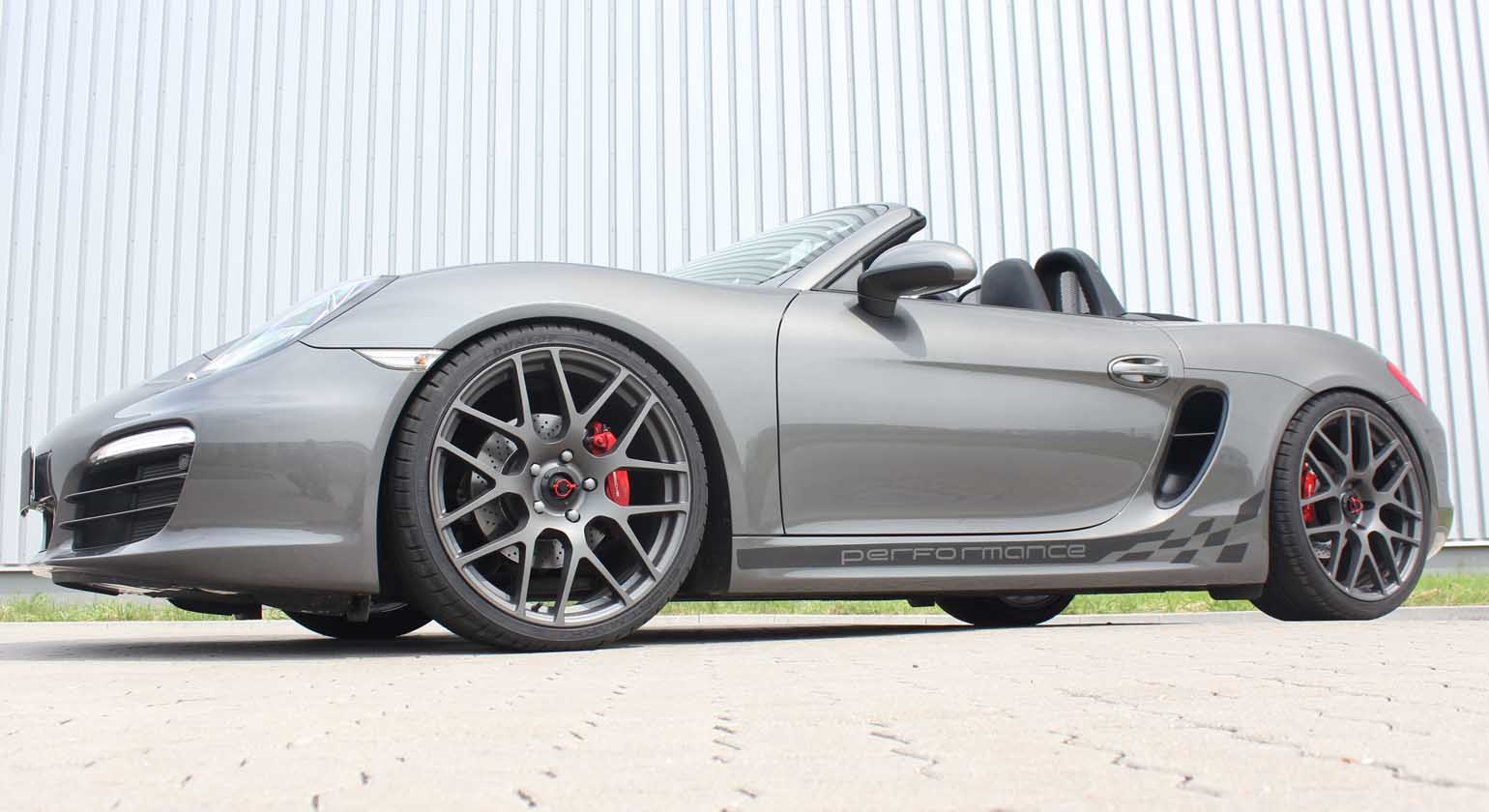

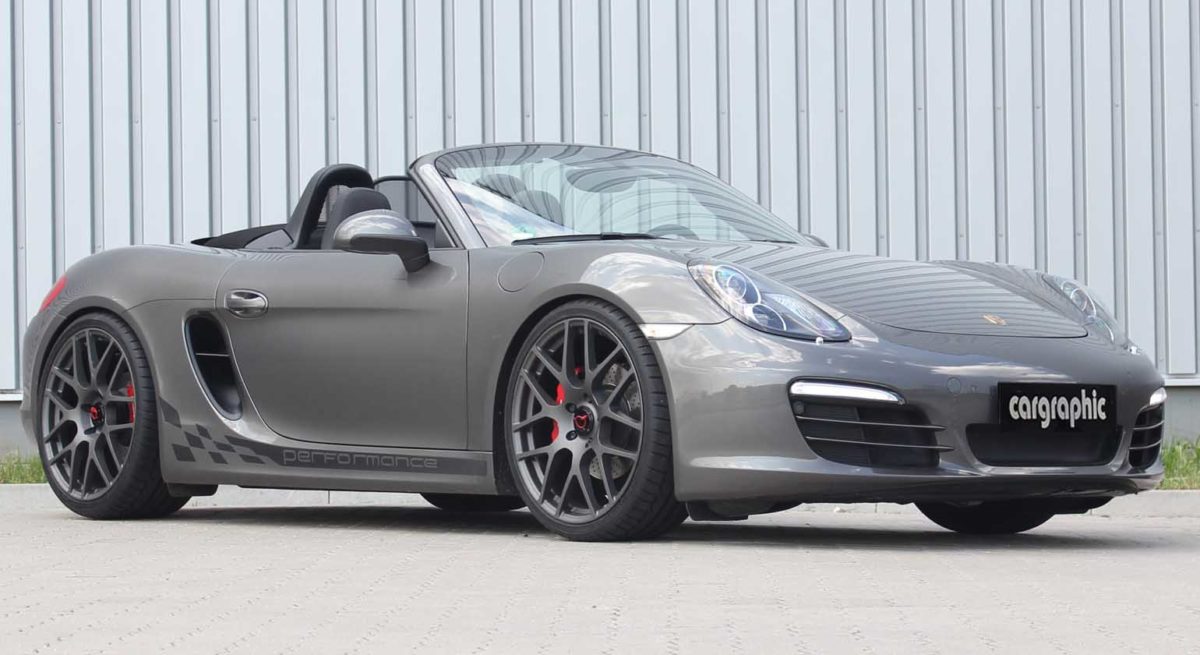

CARGRAPHIC performance17 21 “wheel set for
Porsche 981 Boxster / Boxster S / Boxster Spyder
Porsche 981 Cayman / Cayman S / Cayman GTS

front axle: 2x 9.0×21 ET55 with 255 / 30R21 Pilot Super Sport
rear axle: 2x 10.5×21 ET37 with 305 / 25R21 pilot Super Sport

Complete wheel set with MICHELIN tires

About CARGRAPHIC performance17 design wheels:

the extremely dynamic occurring one-piece forged wheel
performance17 , is the lightest rims series from
CARGRAPHC .
reaching Offering, up to the rim hump, Y / U-spokes
it looks particularly large and dynamic on all vehicle classes.

Its extremely low weight , combined with maximum
load capacity is achieved by a special manufacturing process:
the rotary forging .
The bowl of the wheel is shaped with very high pressure,
while the forged body itself
rotates at very high speed .
This procedure compresses the material structure of the
aluminum used and thereby increases its strength.
The result is a rim that, with the same load capacity,
requires significantly less mass than a conventionally cast wheel.
The position of the mass saved also plays an
important role. In this way, the weight saving
benefits the outer side of the wheel, which enables very little unbalance.
Thanks to these special properties, the CARGRAPHIC
performance17 bike not only impresses with its dynamic appearance, but
also has a noticeably
positive effect on the handling properties of the vehicle .
The CARGRAPHIC performance17 wheel is available from 18 “to 22” in almost
all relevant bolt circles (from 5/108 to 5/130).

Technical data CARGRAPHIC performance17 wheel 21 “inch:

• 1-piece quality product
• Rotational forge wheel
• extremely light with a load capacity of up to 900kg
• With TÜV strength report (LK 5×130)
• Available from 9.0 “to 11.0” x21 “
• Available in bolt circles 5×108 to 5×130
• Available in Gun-Metal Gray
• Individual color design possible
