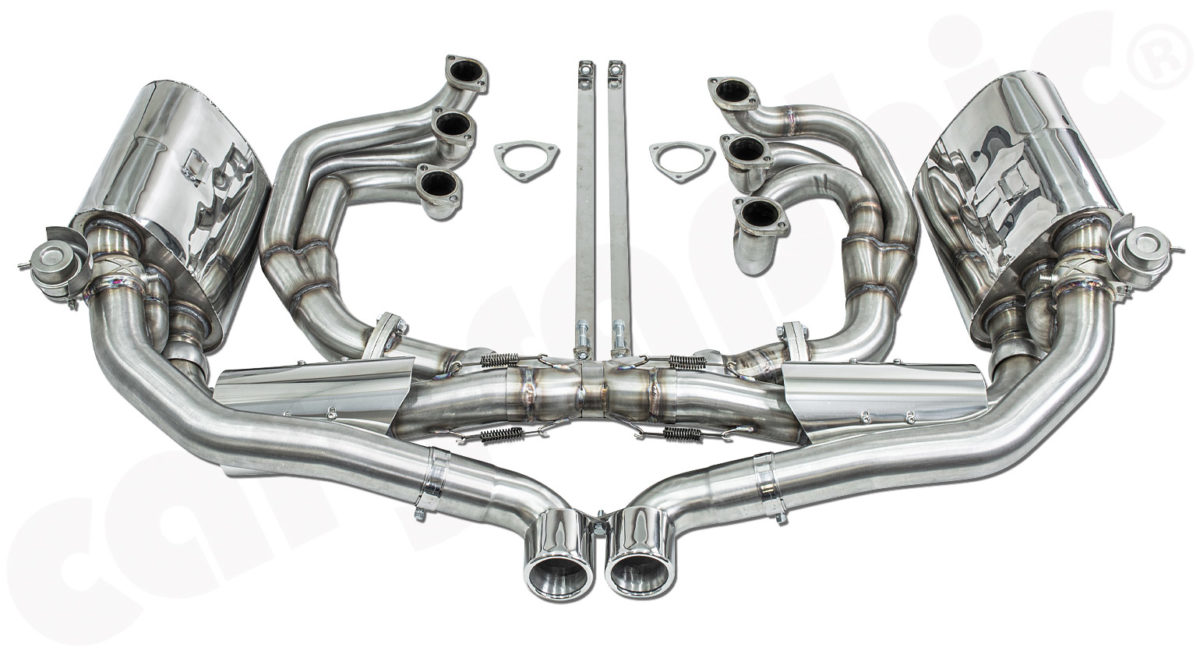

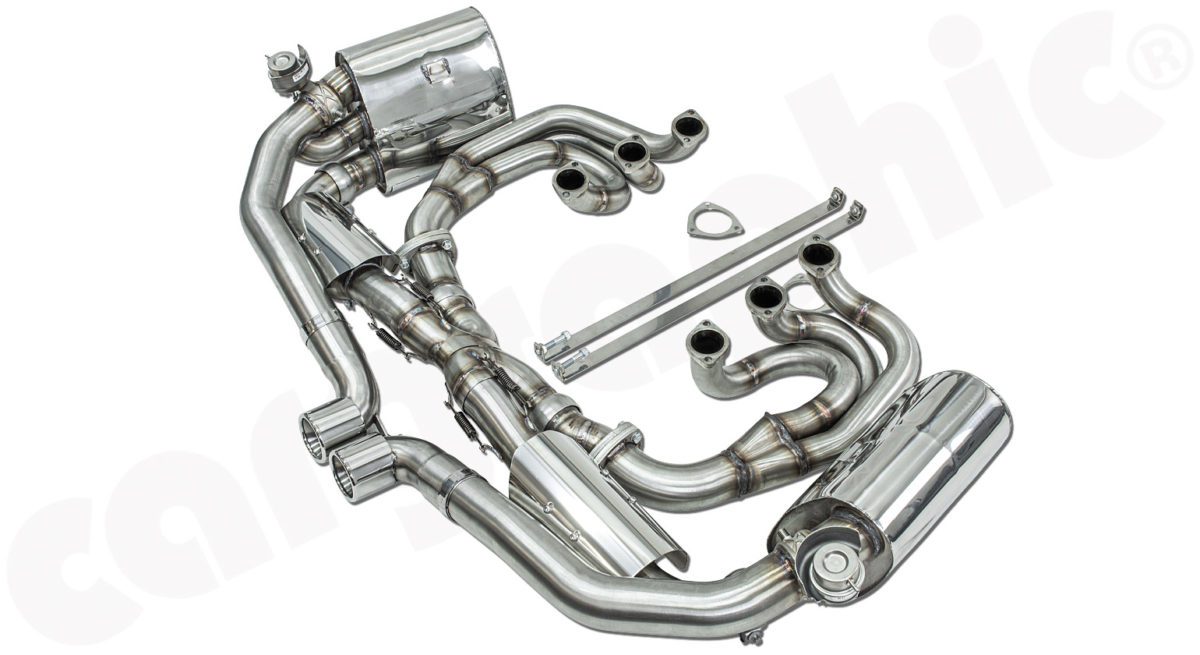

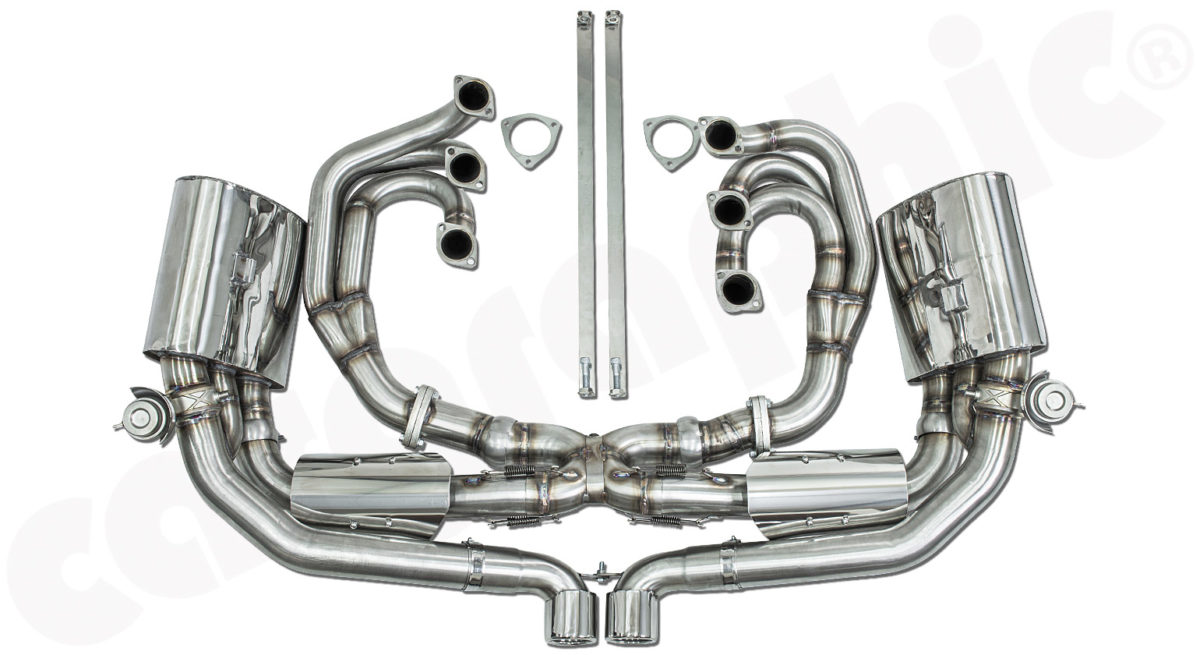

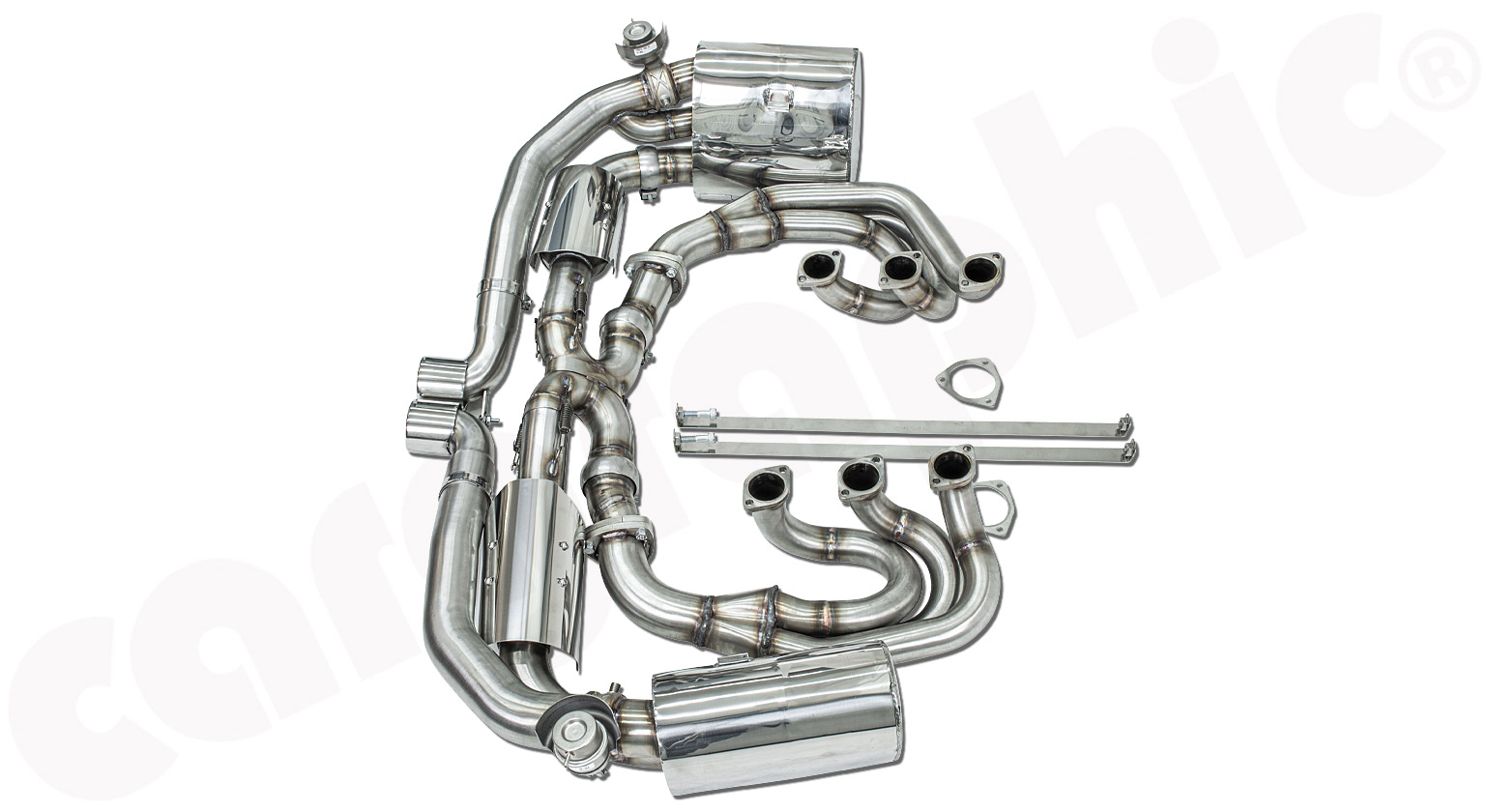

CARGRAPHIC Sport Exhaust System N-GTX

Consisting of:
– 2x CARGRAPHIC ID42 manifolds with ID 42mm primaries and enlarged 2,5" / 63,50mm collector boxes with 2,5"/63,50mm secondaries with 3-hole flange
– CARGRAPHIC X-pipe with 2x100cpsi MS catalytic converters
– CARGRAPHIC sport rear silencer set with 2,5"/63,50mm exhaust valves pressureless closed (PLC)
– 2x CARGRAPHIC sport tailpipes 3"/76mm, round, rolled in, center outlet – mirror polished
– Fitting kit

SOUND / SUPER SOUND EXPORT

Fits for:
– Porsche 993 Carrera 2/4 3,6l
– Porsche 993 RS 3,8l

with backdate rear valance

Features:
– Absorptive silencer design with CNC mandrel-bent pipework
– Fully made from T-304L lightweight stainless steel
– High performance components, dyno tested
– Olive-/ Bandclamp- and sleeve connections enable easy installation and perfect adjustment
– Reinforced laser-cut brackets
– Reduced backpressure due to freer flowing
– Reduced operating temperature
– Maximized performance
– Improved throttle response, freer revving
– Improved enhanced acoustics with no drone, resonation or vibration
– Model specific tuned sound still in keeping with the Marque
– Weight reduction

PERFORMANCE – Made in Germany
+22KW(30PS) more power and +35Nm additonal torque

with optional available Motronic / DME upgrade and BMC air filter
up to +26KW(35PS) more power and +44Nm additonal torque

Attention:

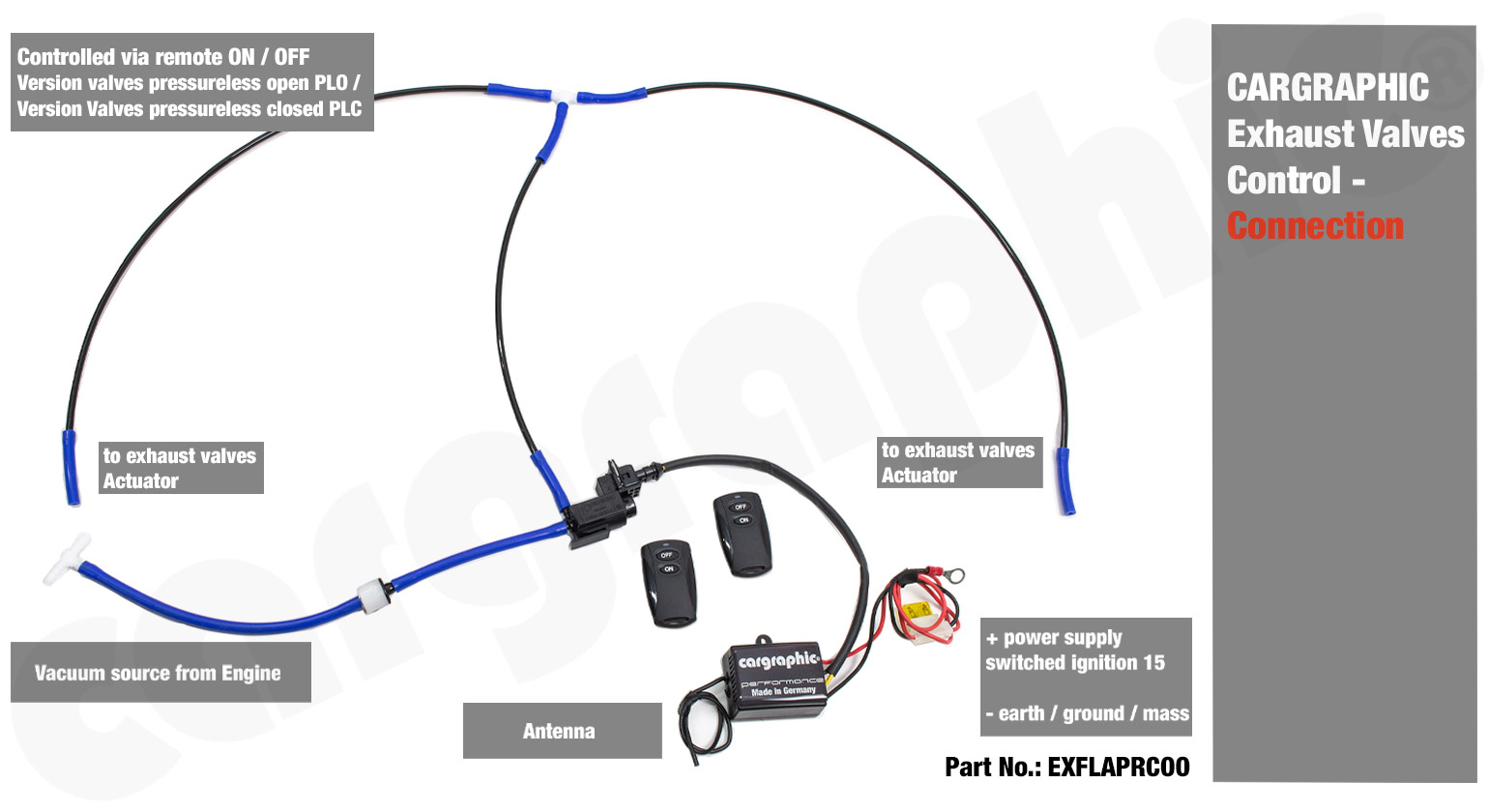

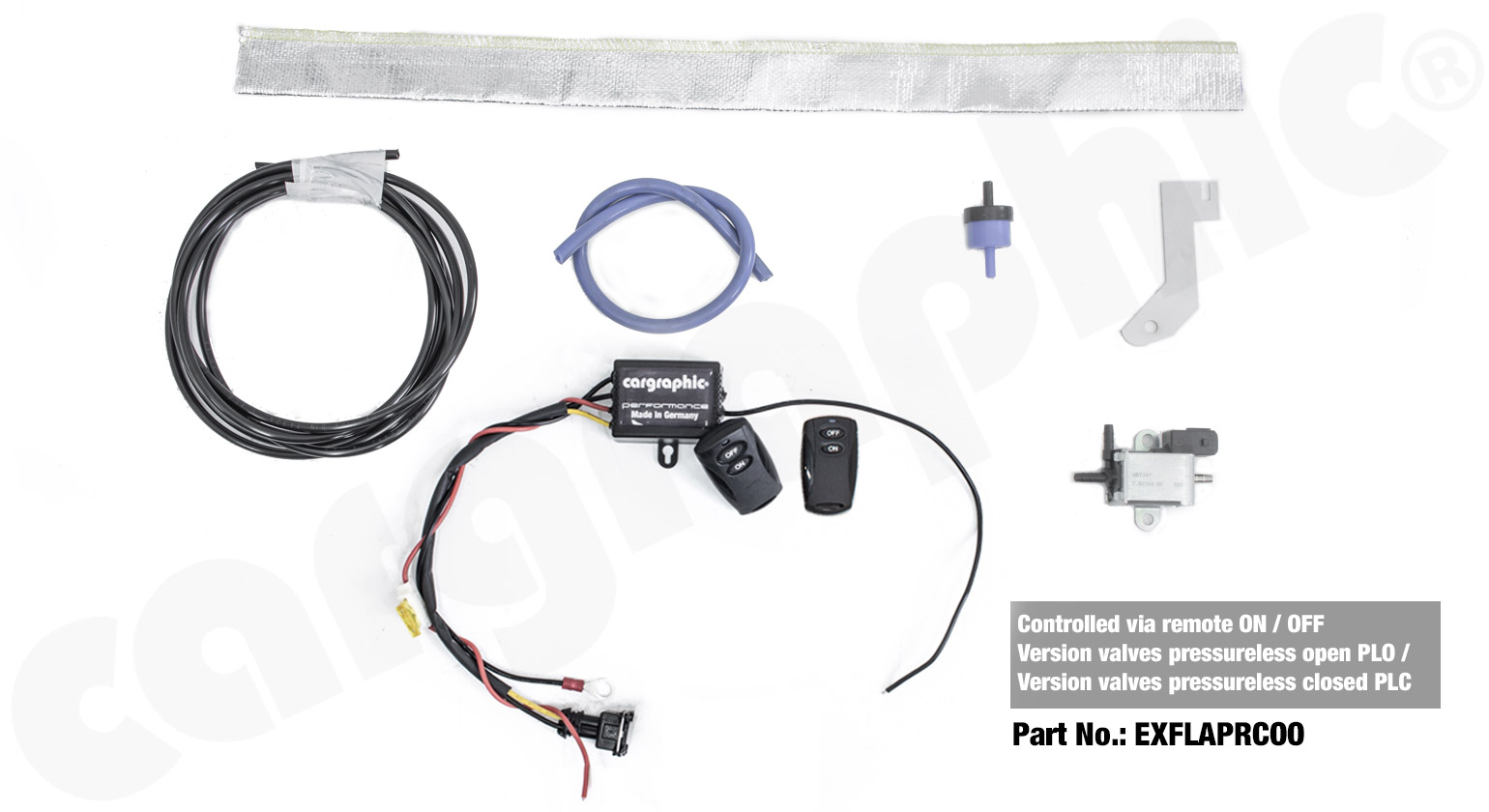

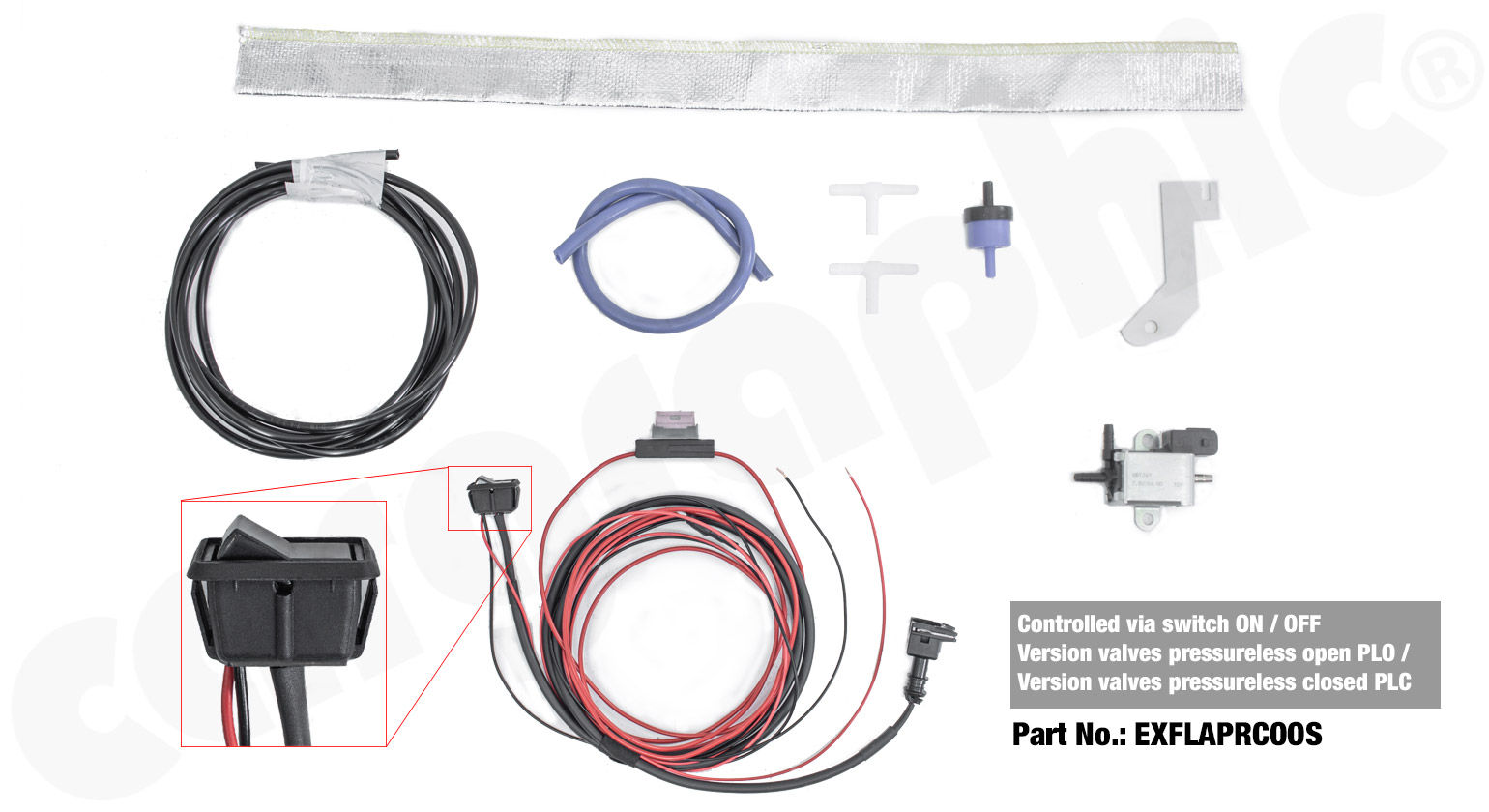

To use this CARGRAPHIC sport exhaust system with integrated exhaust valves you require our optional available CARGRAPHIC performance valve control unit.

Attention customers USA:
MOTORSPORT/RACE Catalytic converters are solely intended for track and race cars and are NOT designed to meet any federal emissions standards in the USA and are NOT for street or highway use. CARGRAPHIC/HJS products are NOT California Air Resources Board certified and NOT EPA certified and we make no claims these products comply with any emissions laws in any jurisdiction. It is entirely the responsibility of the purchaser to inform themselves of any laws or regulations which may prohibit use of these products.

More information to be found under "About CARGRAPHIC / HJS catalytic converters"

Fitting Service:
Benefit from our fitting service in our modern and hightech workshop. A team of qualified, experienced technicians fulfill all your needs with due skill, care and diligence.
