CARGRAPHIC OPF Set, flow optimized

£2,721.80(Prices may be subject to change)(Inc. VAT)Excludes Shipping costs
CARGRAPHIC OPF Set, flow optimized
with filter insert
without sensor connections
NO monitoring ROW models
for
– Porsche 718 Boxster GTS 4,0l
– Porsche 718 Boxster Spyder 4,0l
– Porsche 718 Cayman GTS 4,0l
– Porsche 718 Cayman GT4 4,0l
Product description:

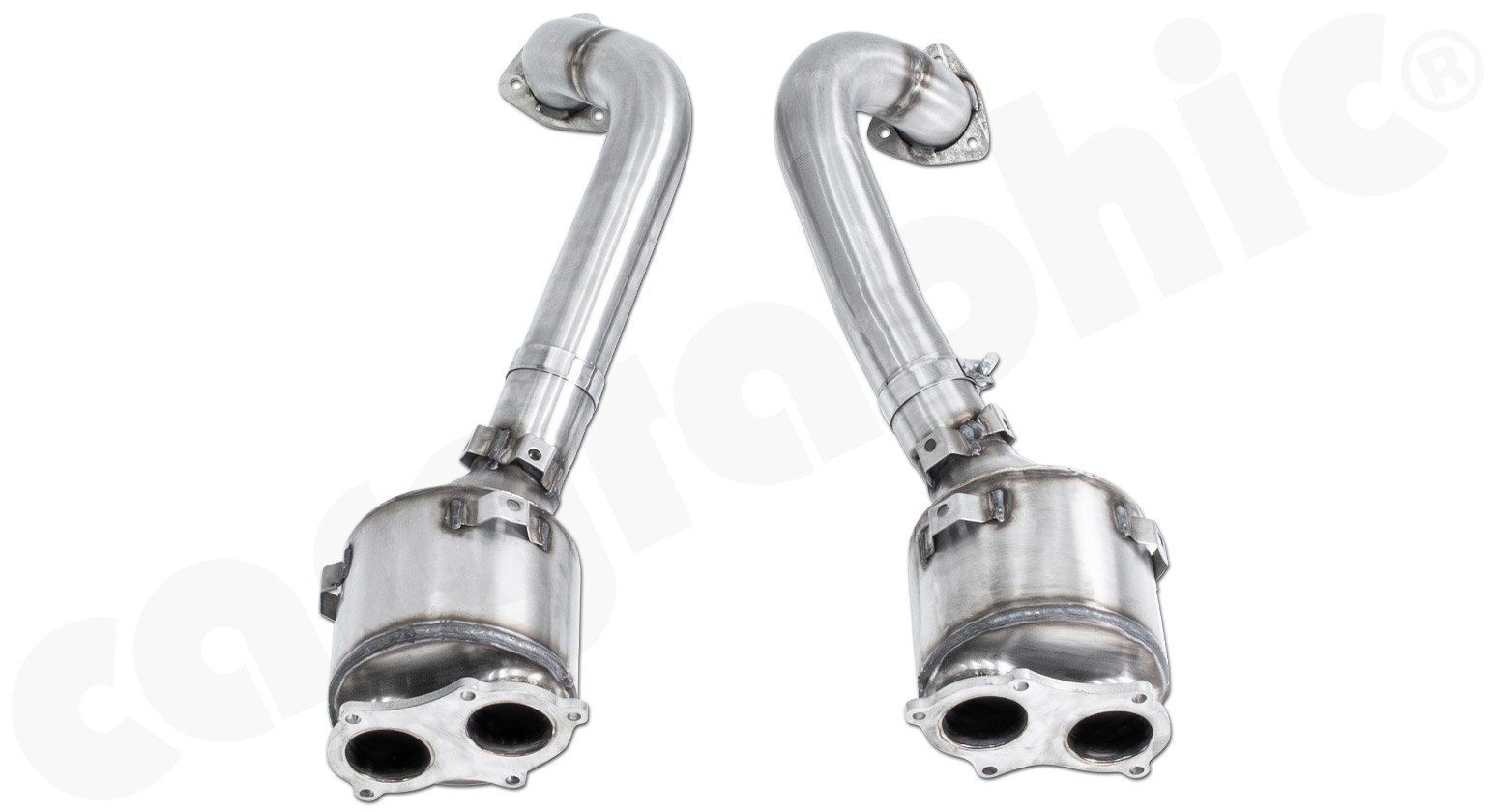

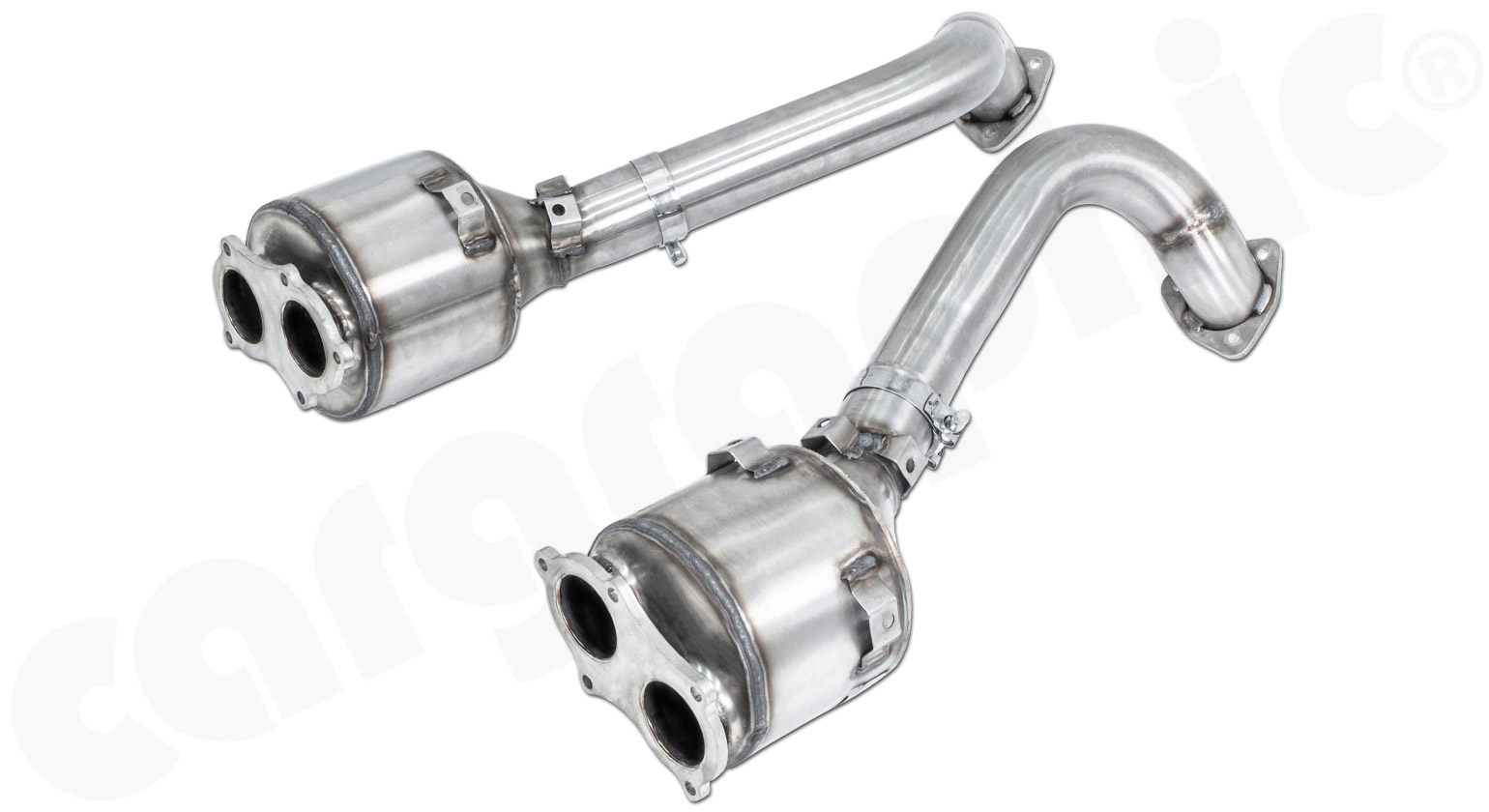

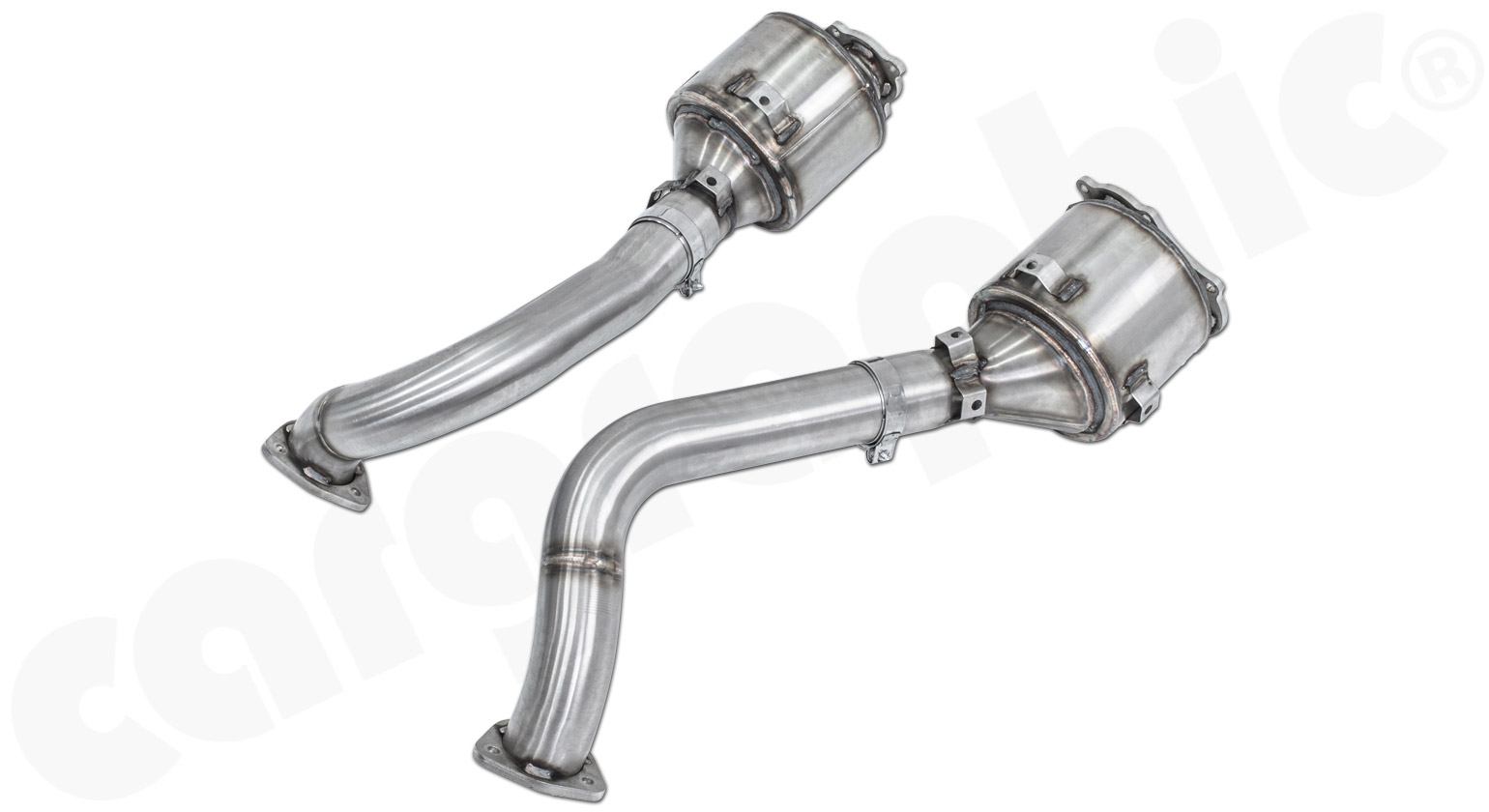

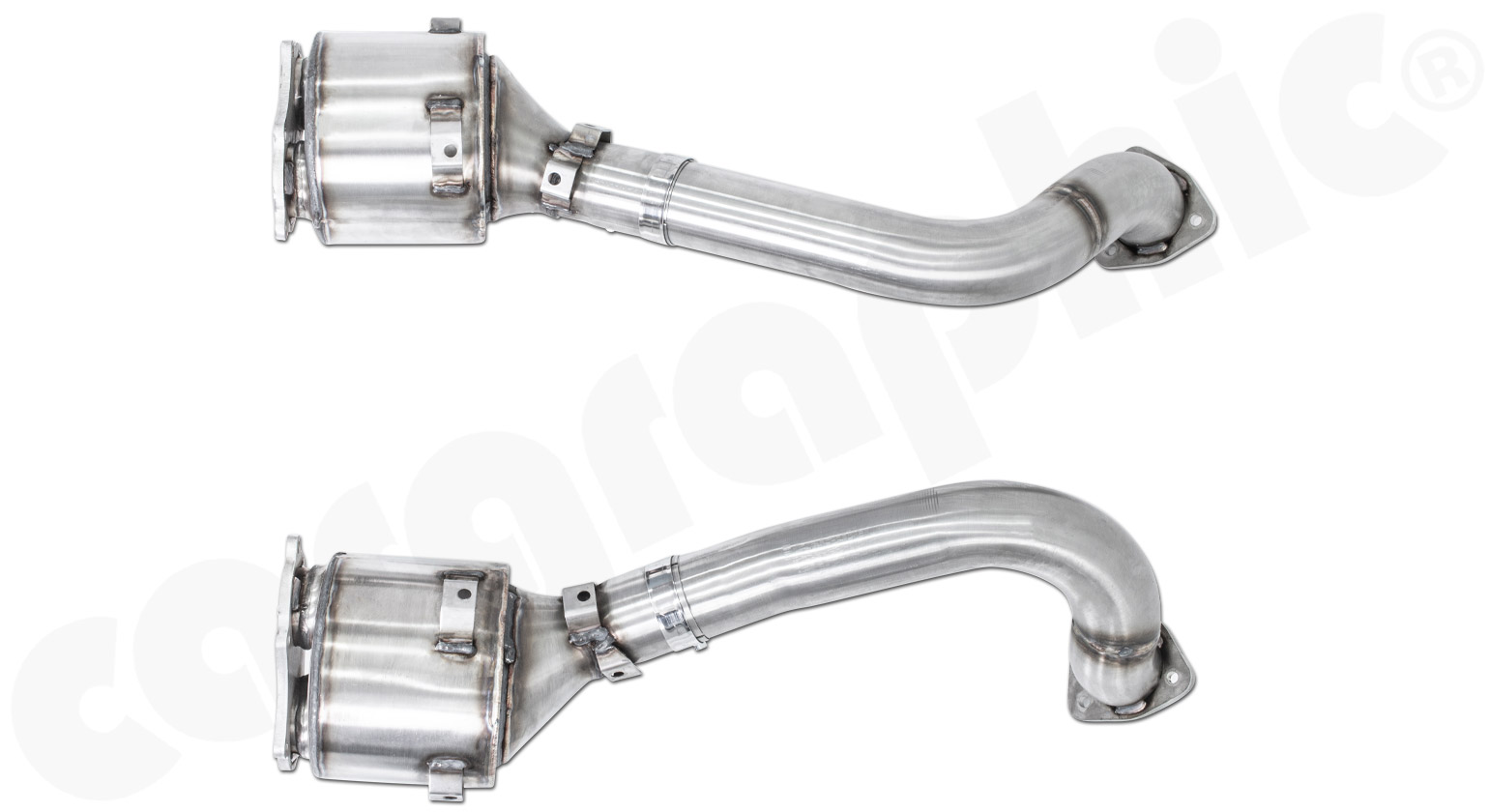

CARGRAPHIC Sport Otto-Particulate-Filter Set Flow optimized SS304L

Consisting of:
CARGRAPHIC Sport Otto-Particulate-Filter Set 2,5″ / 63,50mm pipe diameter with flow optimized filter insert
– with sensor connections NO monitoring ROW models
– with all brackets and attachements to mount the OE / factory heat shields
– original outer diameter to be mounted / attached to OE / factory final silencer bracket

NO Check-Engine light and NO programming of DME / ECU required


Export Version

Fits for:
– Porsche 718 Boxster GTS 4,0l
– Porsche 718 Boxster Spyder 4,0l
– Porsche 718 Cayman GTS 4,0l
– Porsche 718 Cayman GT4 4,0l

Features:
– To be used with CARGRAPHIC or factory / OEM exhaust components
NO check engine light

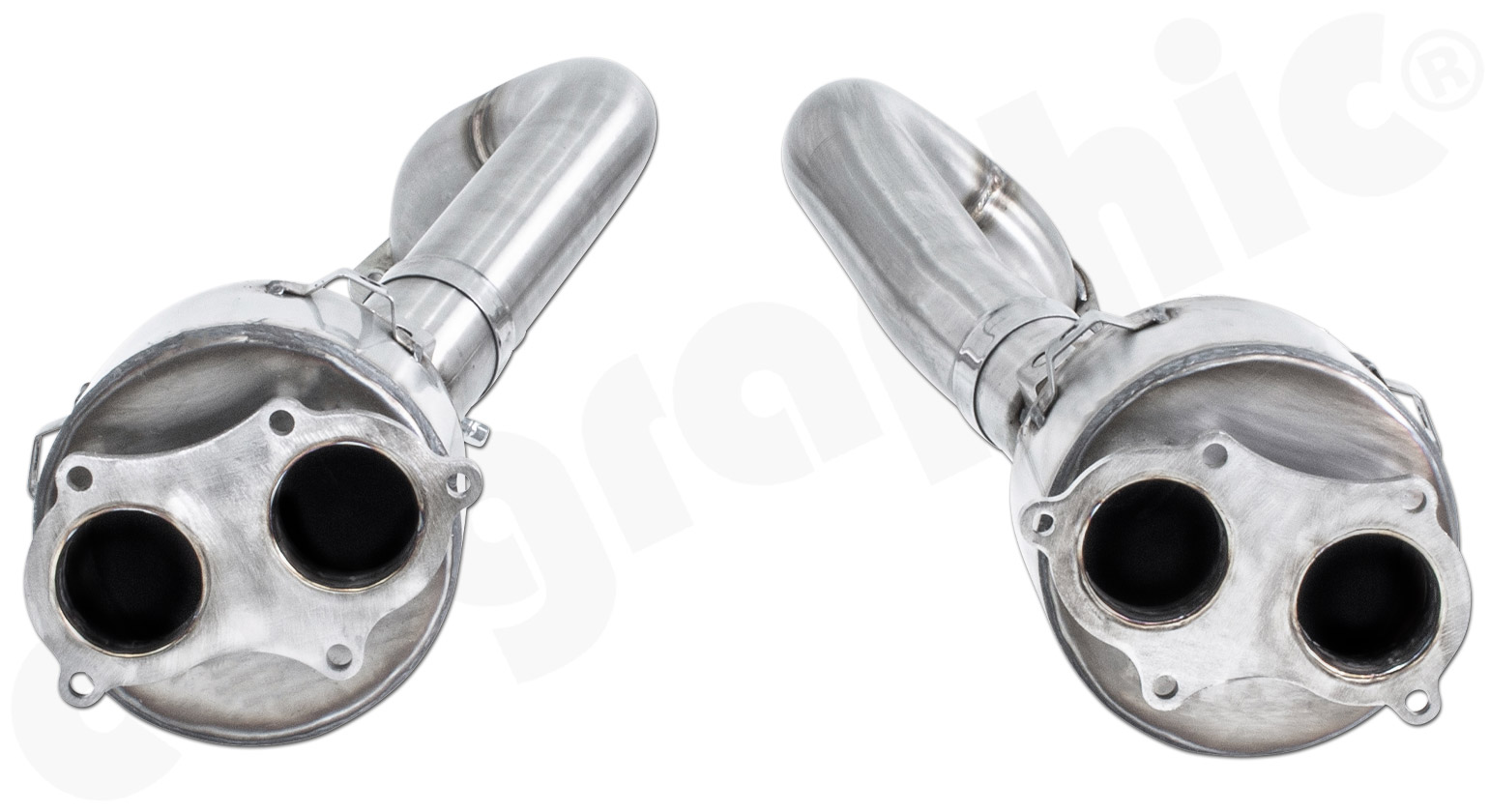

2,5″ / 63,50mm pipe diameter for over axle pipes guiding into Ø165mm housings with 2 x 2,5″ / 63,50mm outlet flange diameters
Maximum flow due to bigger volume and expansion space, resulting from Ø165mm housings and matching cones
– Flow optimized filter insert to reduce back pressure with mixing / merging chamber in front of two hole outlet flange
Manufactured on CNC pipe bending machine with mandrel support (Mandrel-bent), which enables exhaust pipes with constant diameter to be produced.
– All brackets and attachements as on OE / factory parts
– All CARGRAPHIC OPF models correspond 1:1 in shape, mounting and connection to the series Otto Particulate Filter. This elaborate design allows the factory fastening elements, heat protection parts and sensors to be easily adopted. In addition, the cylindrical design ensures a 100% accurate fit and maximum stability with the rear silencer bracket. This is essential important as without it, it will cause cracking due to the leverage.
Fully made from SS304L lightweight stainless steel
– Reinforced SS304L lightweight stainless steel laser-cut flanges and brackets
– Reduced backpressure due to freer flowing
– Reduced operating temperature
High performance components, dyno tested
Maximized performance and torque addition
Improved throttle response, freer revving
Improved enhanced acoustics with no drone, resonation or vibration
– Model specific tuned sound still in keeping with the Marque
– Weight reduction

PERFORMANCE – Made in Germany
+12KW(16PS)
more power and +14Nm additonal torque

Attention customers USA:
MOTORSPORT/RACE Catalytic converters are solely intended for track and race cars are NOT designed to meet any federal

emissions standards in the USA and are NOT for street or highway use. CARGRAPHIC/HJS products are NOT California Air Resources Board certified and NOT EPA certified and we make no claims these products comply with any emissions laws in any jurisdiction. It is entirely the responsibility of the purchaser to inform themselves of any laws or regulations which may prohibit use of these products.

More information to be found under “About CARGRAPHIC / HJS catalytic converters”

Fitting Service:
Benefit from our fitting service in our modern and hightech workshop. A team of qualified, experienced technicians fulfill all your needs with due skill, care and diligence.

If you would like more information about this part please click below or call us on 01293 537 911.

Part Enquiry

Product description:
CARGRAPHIC Sport Otto-Particulate-Filter Set Flow optimized SS304L

Consisting of:
CARGRAPHIC Sport Otto-Particulate-Filter Set 2,5″ / 63,50mm pipe diameter with flow optimized filter insert
– with sensor connections NO monitoring ROW models
– with all brackets and attachements to mount the OE / factory heat shields
– original outer diameter to be mounted / attached to OE / factory final silencer bracket

NO Check-Engine light and NO programming of DME / ECU required


Export Version

Fits for:
– Porsche 718 Boxster GTS 4,0l
– Porsche 718 Boxster Spyder 4,0l
– Porsche 718 Cayman GTS 4,0l
– Porsche 718 Cayman GT4 4,0l

Features:
– To be used with CARGRAPHIC or factory / OEM exhaust components
NO check engine light
2,5″ / 63,50mm pipe diameter for over axle pipes guiding into Ø165mm housings with 2 x 2,5″ / 63,50mm outlet flange diameters
Maximum flow due to bigger volume and expansion space, resulting from Ø165mm housings and matching cones
– Flow optimized filter insert to reduce back pressure with mixing / merging chamber in front of two hole outlet flange
Manufactured on CNC pipe bending machine with mandrel support (Mandrel-bent), which enables exhaust pipes with constant diameter to be produced.
– All brackets and attachements as on OE / factory parts
– All CARGRAPHIC OPF models correspond 1:1 in shape, mounting and connection to the series Otto Particulate Filter. This elaborate design allows the factory fastening elements, heat protection parts and sensors to be easily adopted. In addition, the cylindrical design ensures a 100% accurate fit and maximum stability with the rear silencer bracket. This is essential important as without it, it will cause cracking due to the leverage.
Fully made from SS304L lightweight stainless steel
– Reinforced SS304L lightweight stainless steel laser-cut flanges and brackets
– Reduced backpressure due to freer flowing
– Reduced operating temperature
High performance components, dyno tested
Maximized performance and torque addition
Improved throttle response, freer revving
Improved enhanced acoustics with no drone, resonation or vibration
– Model specific tuned sound still in keeping with the Marque
– Weight reduction

PERFORMANCE – Made in Germany
+12KW(16PS)
more power and +14Nm additonal torque

Attention customers USA:
MOTORSPORT/RACE Catalytic converters are solely intended for track and race cars are NOT designed to meet any federal

emissions standards in the USA and are NOT for street or highway use. CARGRAPHIC/HJS products are NOT California Air Resources Board certified and NOT EPA certified and we make no claims these products comply with any emissions laws in any jurisdiction. It is entirely the responsibility of the purchaser to inform themselves of any laws or regulations which may prohibit use of these products.

More information to be found under “About CARGRAPHIC / HJS catalytic converters”

Fitting Service:
Benefit from our fitting service in our modern and hightech workshop. A team of qualified, experienced technicians fulfill all your needs with due skill, care and diligence.
