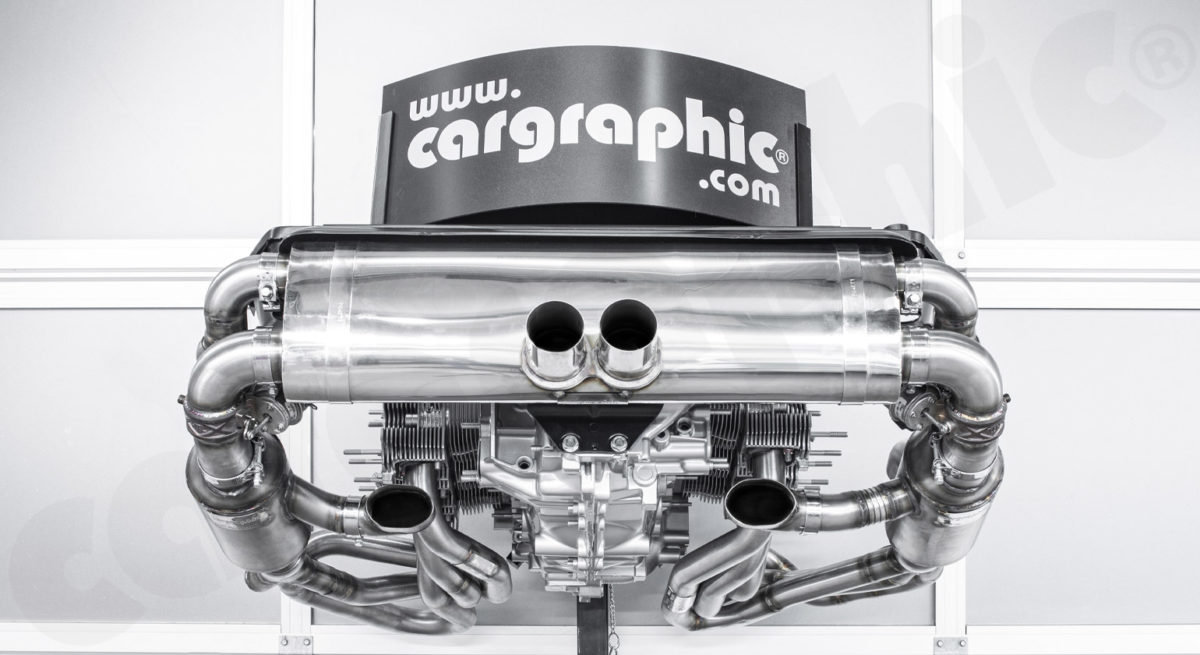

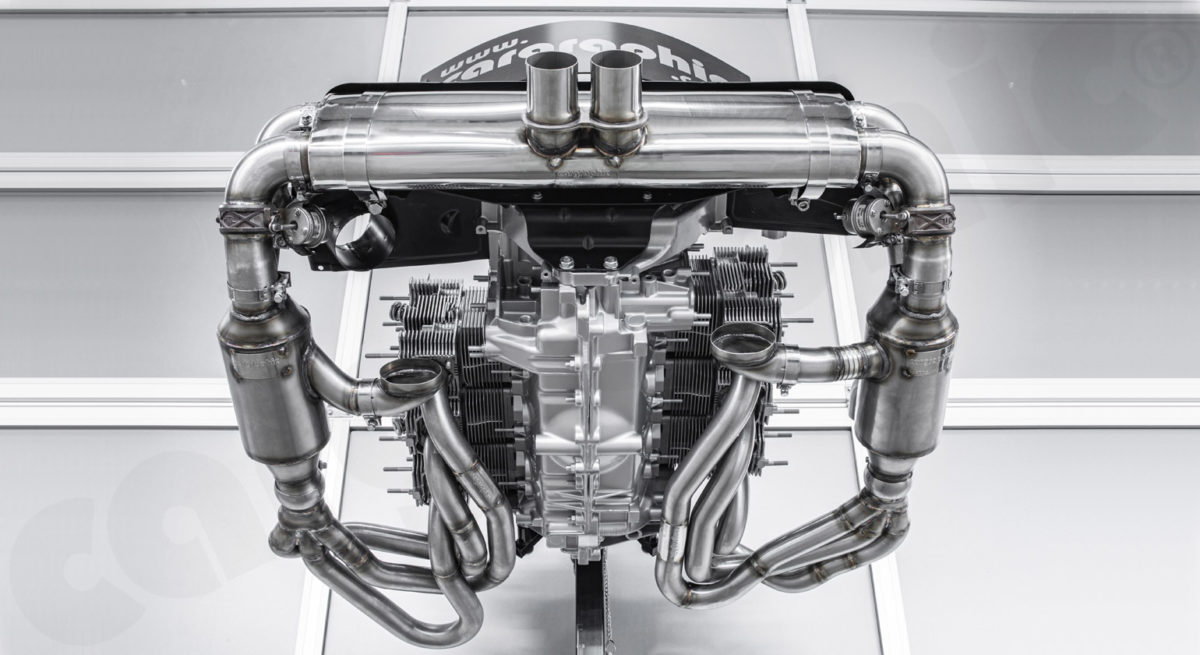

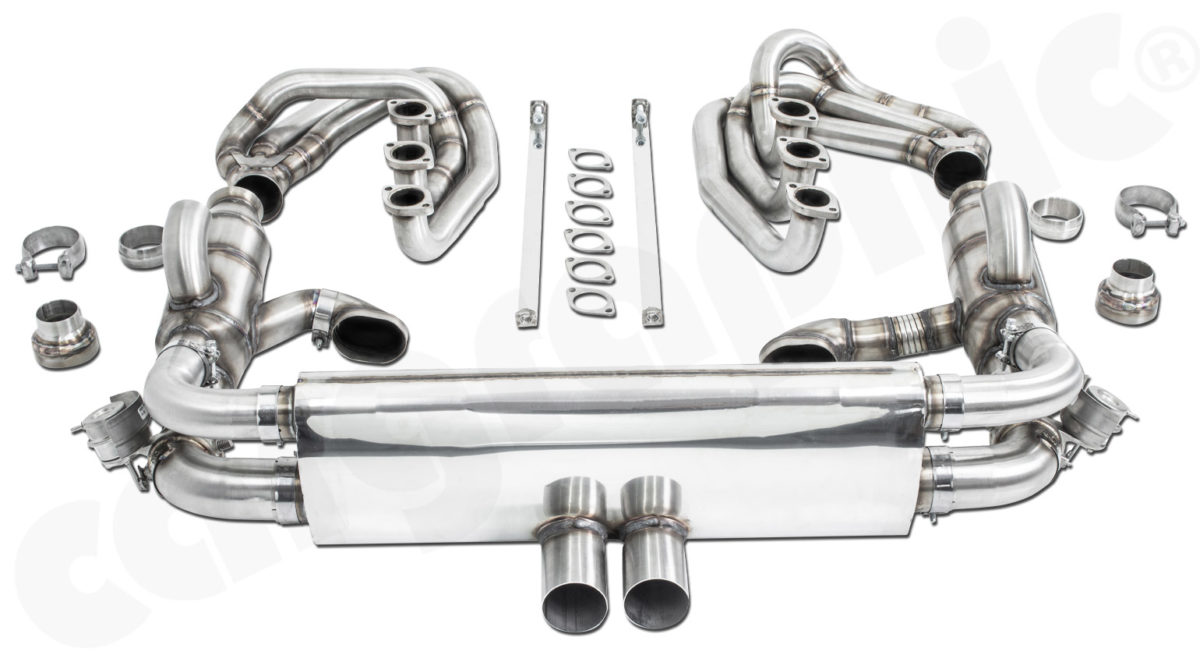

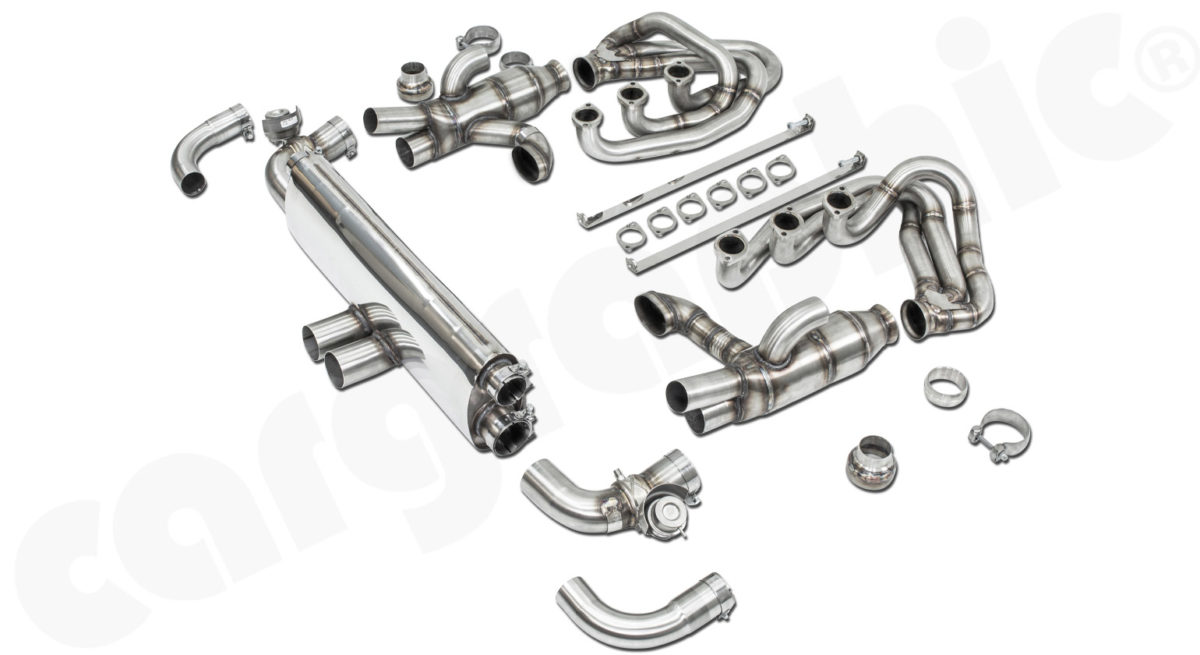

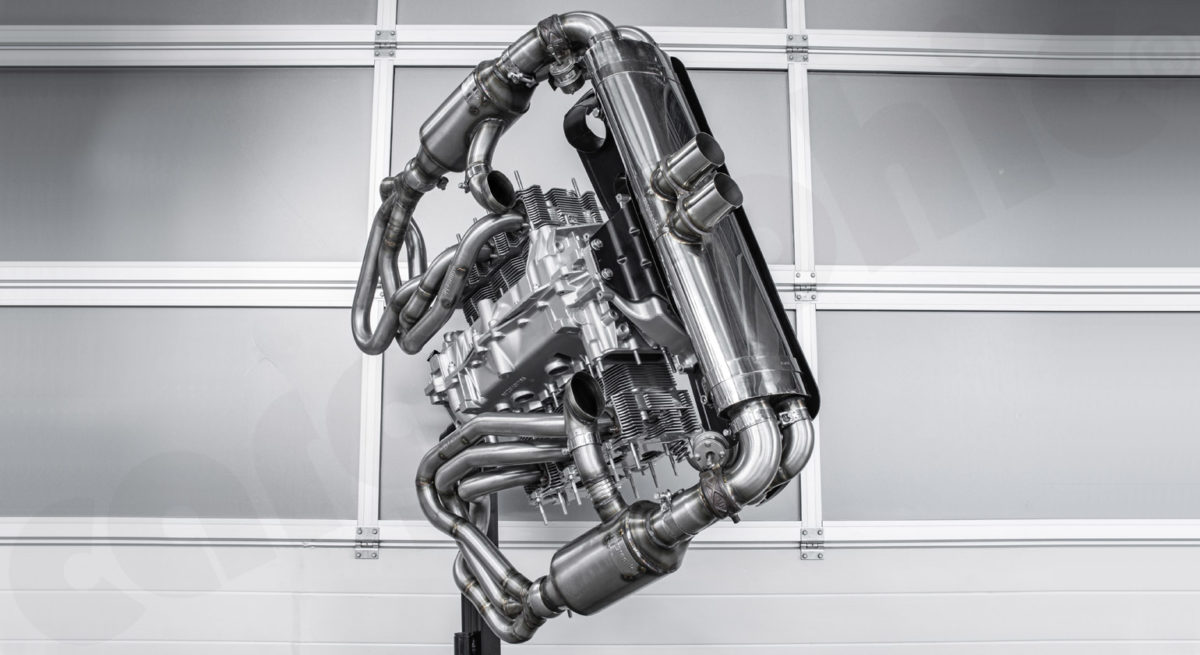

CARGRAPHIC GT Sport Exhaust System

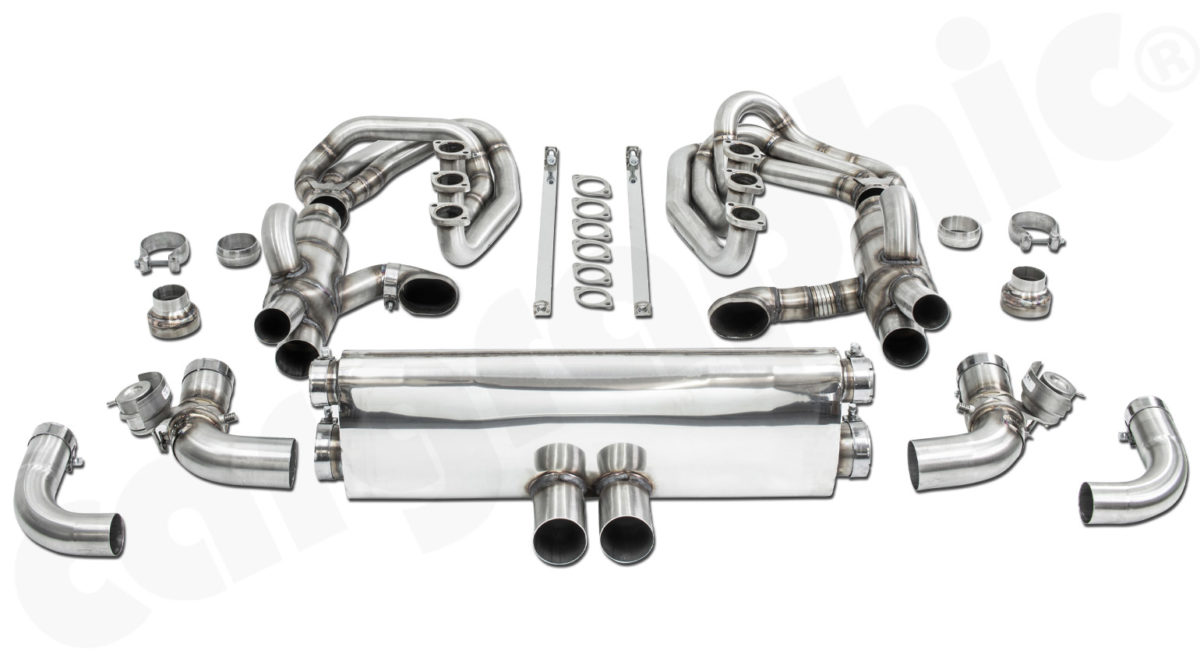

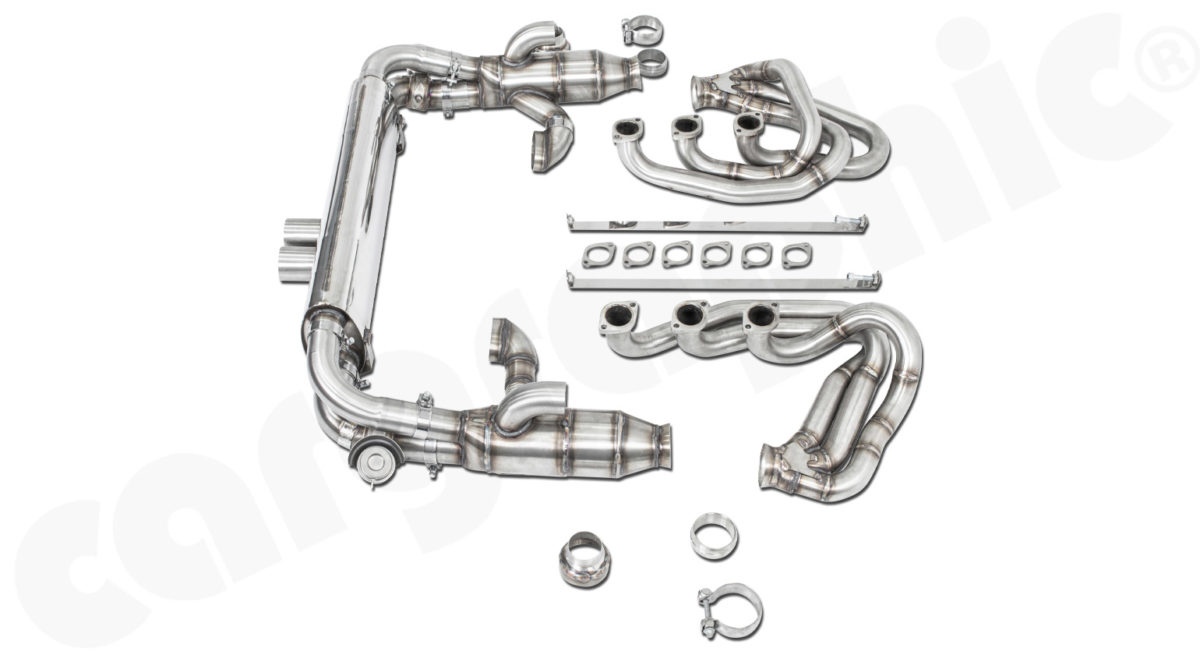

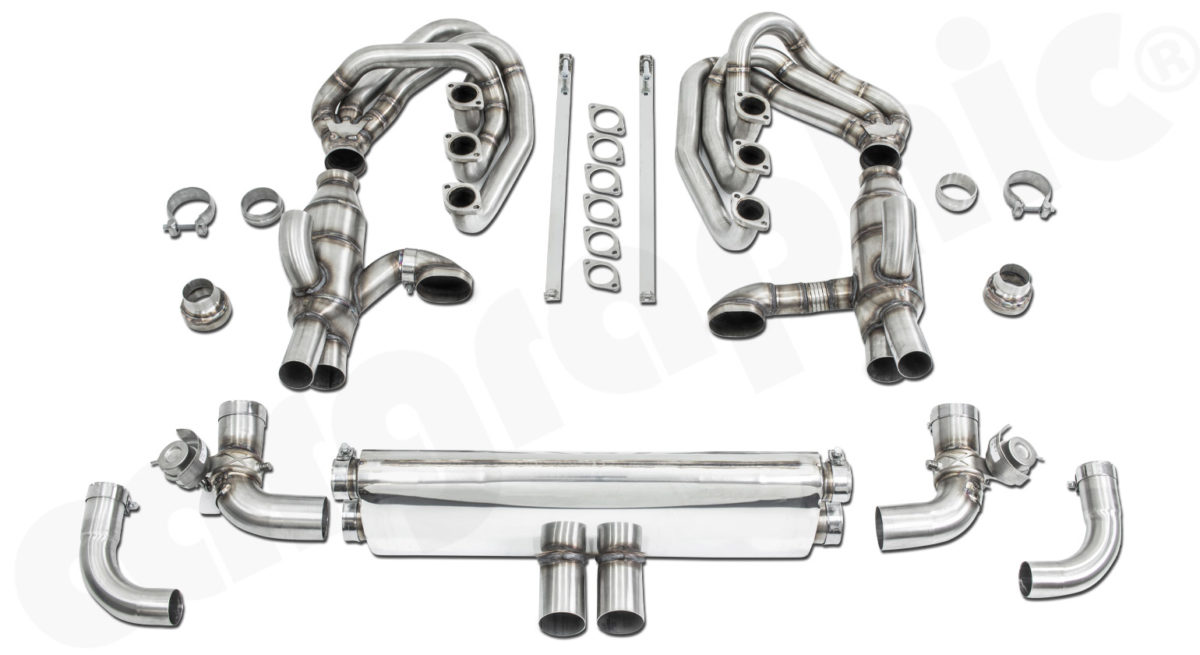

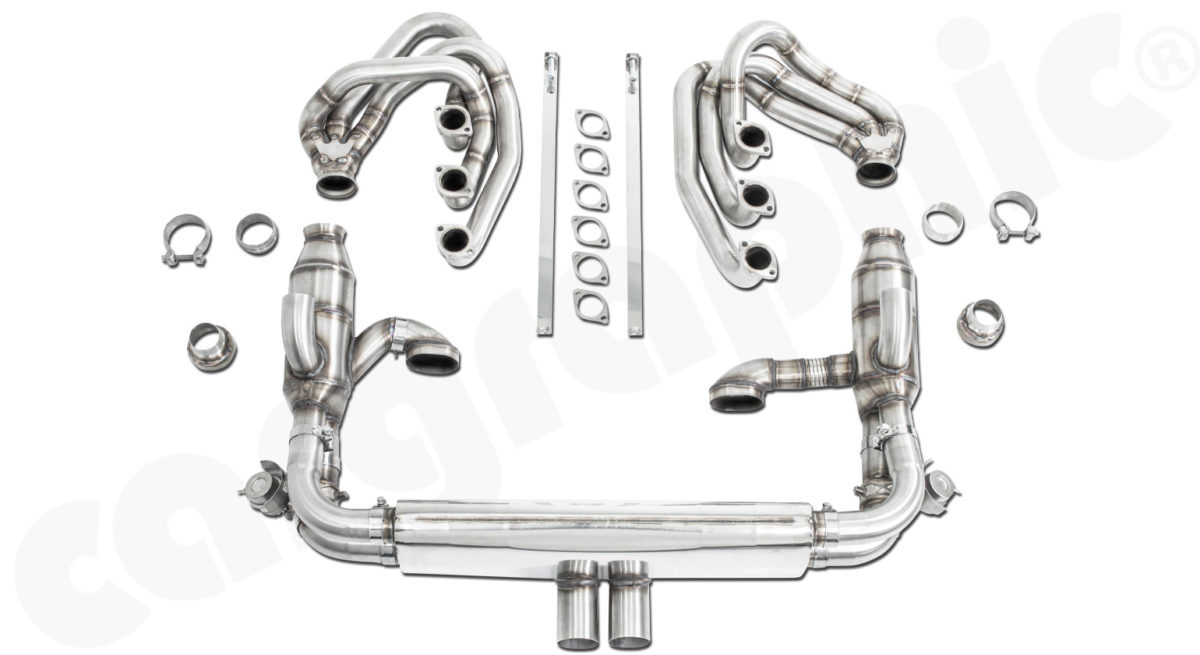

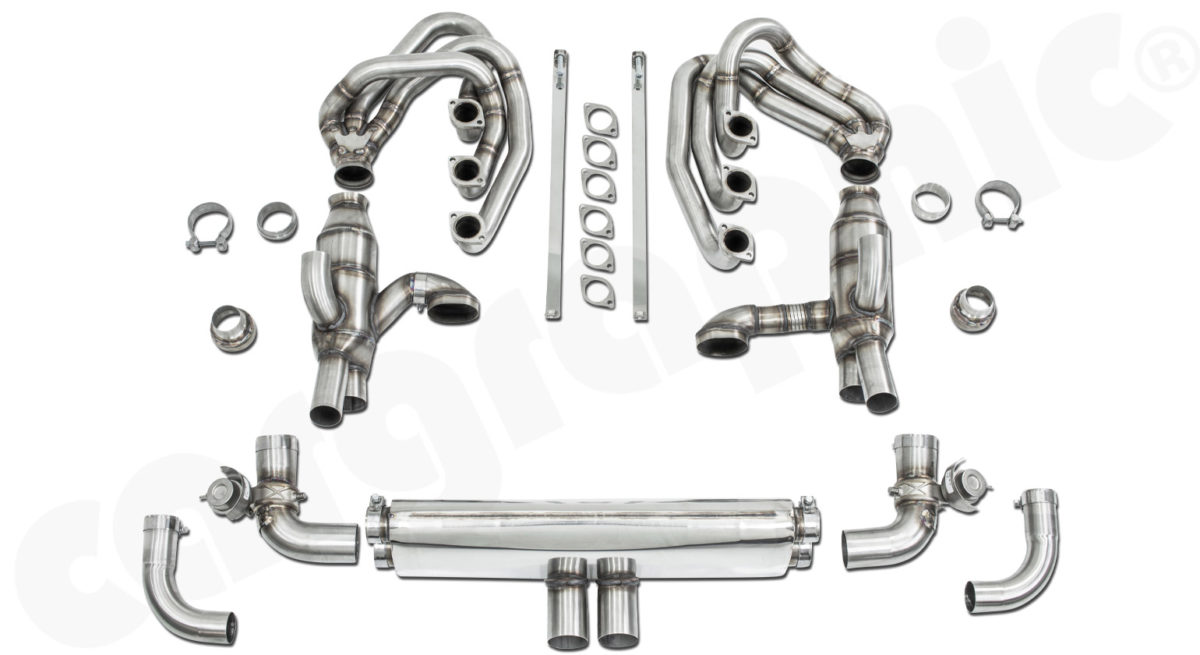

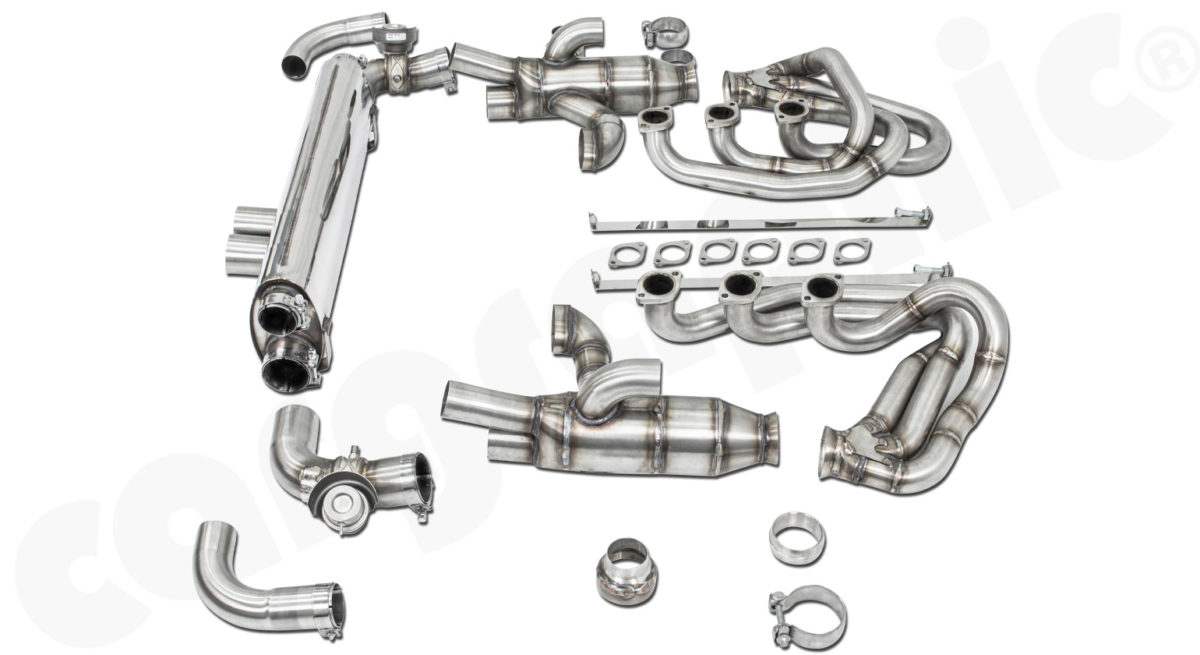

Consisting of:
– 2x CARGRAPHIC ID42 GT manifoldset with ID 42mm primaries and enlarged 2,5" / 63,50mm flared end collector boxes
– CARGRAPHIC 2x 100 cpsi Ø110mm  highflow MS catalytic converters link pipe set with heating and integrated exhaust valves pressureless closed (PLC)
– CARGRAPHIC 4>2 flow sport rear silencer with center outlet tailpipes 2×63,50mm GT3 Look
– Adapterset heater hoses
– Fitting kit including gaskets and bandstraps

Fits for:
– Porsche 964 Carrera 2 / 4 / RS

with Backdate rear valance

Features:
– Absorptive silencer design with CNC mandrel-bent pipework
– Two silencer versions for backdate rear valances available. Wide version with big volume 212 x 131 x 700mm and a narrow version with small volume 203 x 102 x 700mm for limited fitting space.
– Fully made from SS304L lightweight stainless steel
– High performance components, dyno tested
– OE / factory heating system retains full functional
– Olive-/ Bandclamp- and sleeve connections enable easy installation and perfect adjustment
– Collector boxes and silencer inlet flanges positioned max to the outside to achieve max possible clearance to valve covers, because of heat radiation.
– Reinforced laser-cut brackets
– Reduced backpressure due to freer flowing
– Reduced operating temperature
– Maximized performance
– Improved throttle response, freer revving
– Improved enhanced acoustics with no drone, resonation or vibration
– New designed Ø2,5" / 63,50mm exhaust flaps are pressureless closed (PLC) which means the car will start quietly (whereas the ordinary version needs intake vacuum to close the flaps which always takes quite some time and can be annoying)
– With flaps closed the gases flow, via the bypass pipes, silenced through the final silencer, whereas with flaps open most of the gas stream flows freely through a second exit within the tailpipes. The sound is reminiscent of the famous and legendary RSR`s, simply breath taking!
– Model specific tuned sound still in keeping with the Marque
– Weight reduction

PERFORMANCE – Made in Germany
+22KW(30PS) more power and +35Nm additonal torque

with Motronic / DME upgrade
+26KW(35PS) more power and +44Nm additonal torque
including TÜV certificate 210KW(285PS) and 360Nm,
Top Speed 275 km/h / 172mph

Attention:
Not suitable for models with Tiptronic transmission.

Attention:
Porsche 964 models require our optional available CARGRAPHIC performance valve control unit.

Attention customers USA:
MOTORSPORT/RACE Catalytic converters are solely intended for track and race cars and are NOT designed to meet any federal emissions standards in the USA and are NOT for street or highway use. CARGRAPHIC/HJS products are NOT California Air Resources Board certified and NOT EPA certified and we make no claims these products comply with any emissions laws in any jurisdiction. It is entirely the responsibility of the purchaser to inform themselves of any laws or regulations which may prohibit use of these products.

More information to be found under "About CARGRAPHIC / HJS catalytic converters"
