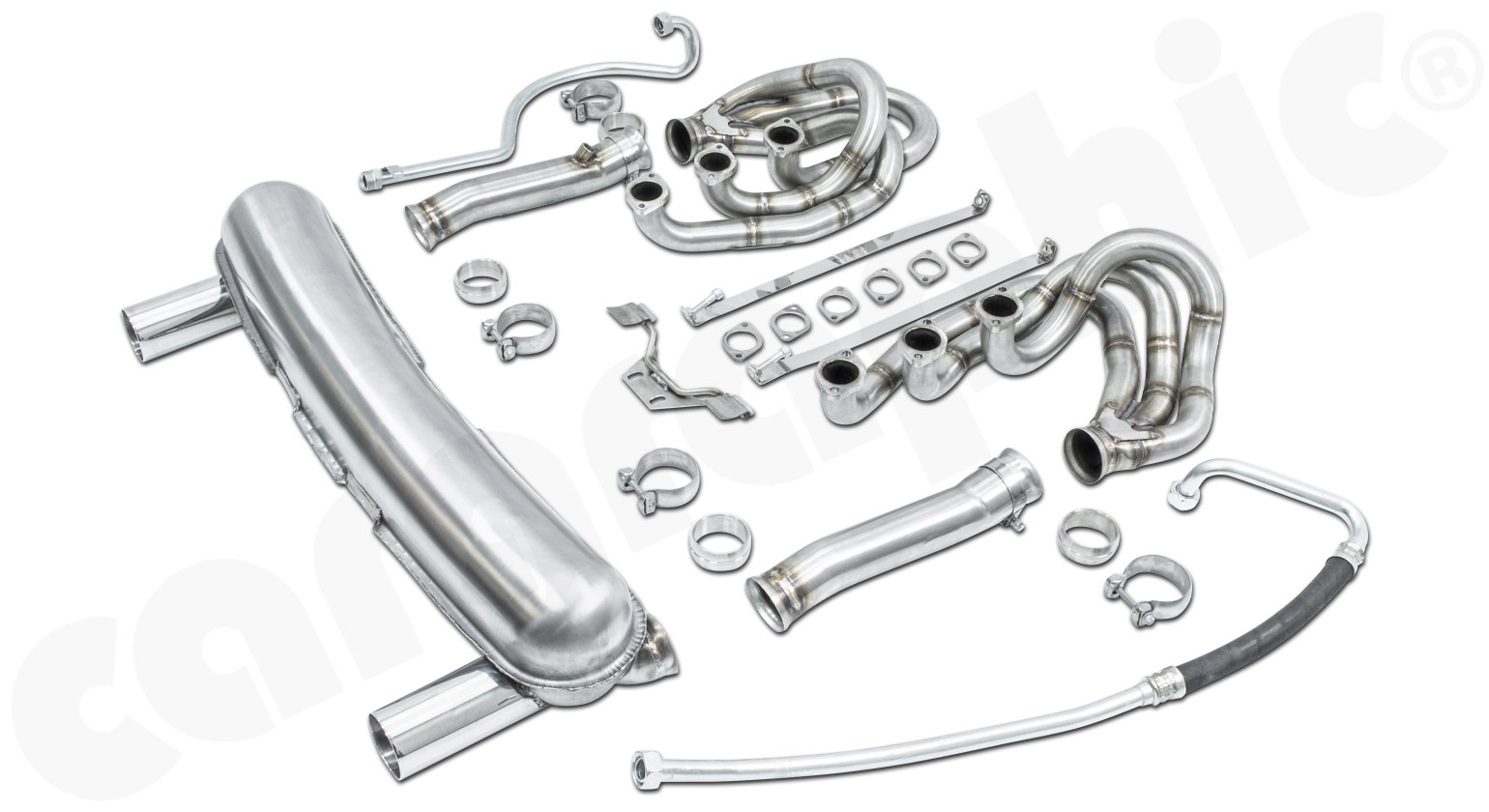

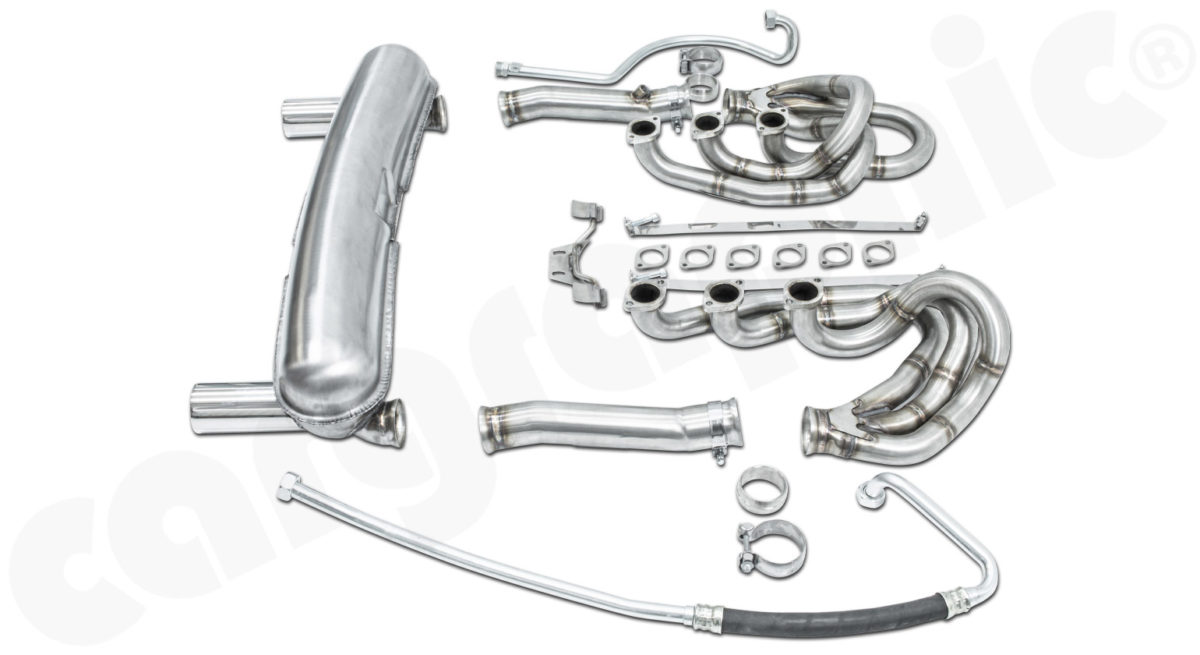

CARGRAPHIC Sport Exhaust System

Consisting of:
– 2x CARGRAPHIC ID42 GT manifolds with ID 42mm primaries and enlarged 2,5" / 63,50mm flared end collector boxes
– CARGRAPHIC link pipe set 2,5" / 63,50mm
– CARGRAPHIC sport rear silencer "Banana"-shape with Aeroquip flanges 2,5" / 63,50mm pipework. Tailpipe outlet left and right

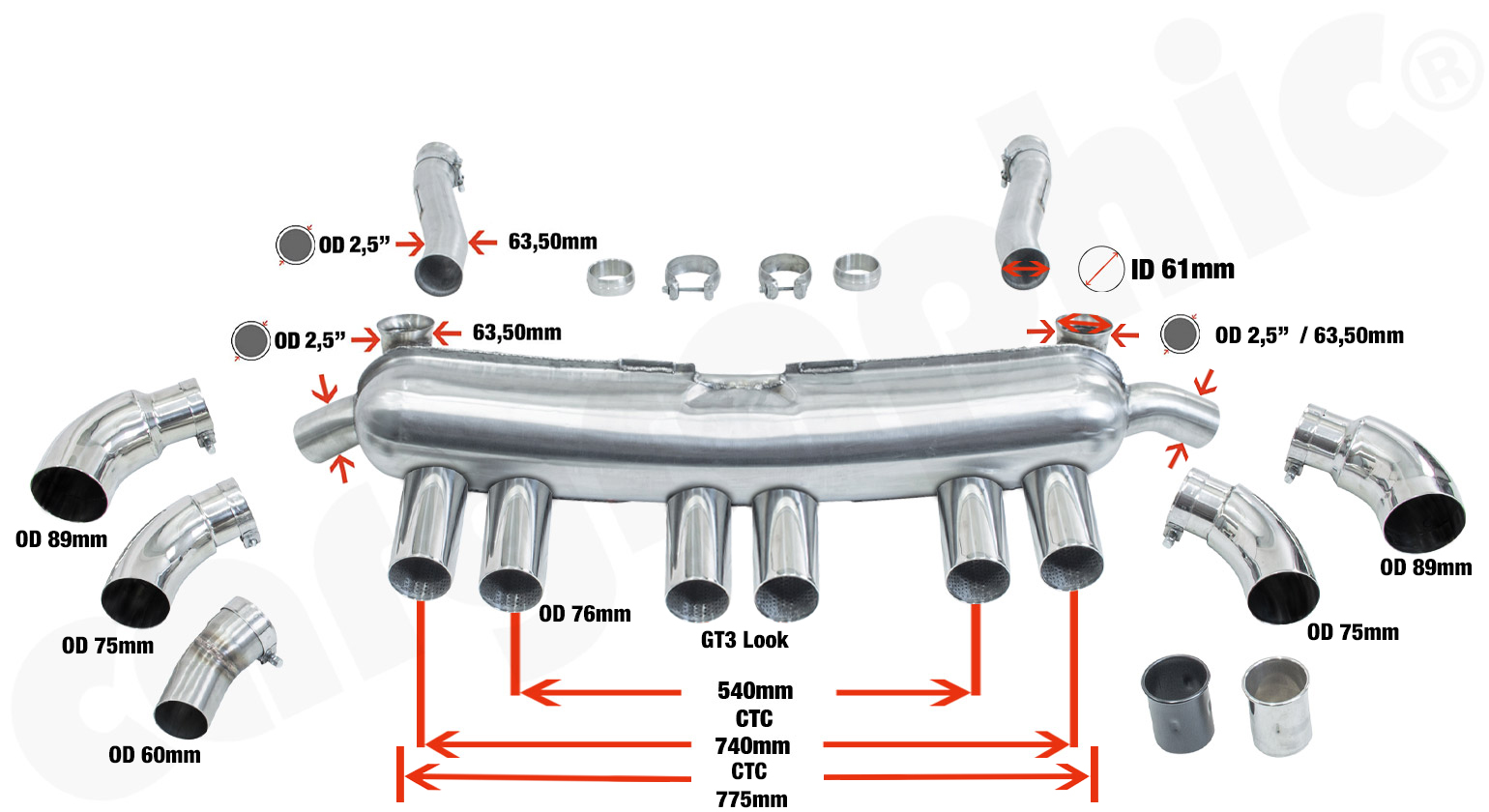

– Tailpipe variations:
– 2x CARGRAPHIC sport tailpipes in Ø76mm welded with a CTC gap of 540mm (ST-Look) or 740mm (RSR-Look)
– 2x CARGRAPHIC sport tailpipes, adjustable, sleeve fitted, available in Ø60mm (OE-size), 75mm or 89mm
– Fitting kit including gaskets, bracket, bandstraps, and oilpipes.

System is delivered without catalytic converter

Fits for:
– Porsche 911 G-model 2,7l
– Porsche 911 G-model 3,0l
– Porsche 911 G-model 3,2l

Features:
– Absorptive silencer design with CNC mandrel-bent pipework
– Fully made from T-304L lightweight stainless steel
– High performance components, dyno tested
– Olive-/ Bandclamp- and sleeve connections enable easy installation and perfect adjustment
– Collector boxes and AQ silencer inlet flanges positioned max to the outside to achieve max possible clearance to valve covers, because of heat radiation.
– Reinforced laser-cut brackets
– Reduced backpressure due to freer flowing
– Reduced operating temperature
– Maximized performance
– Improved throttle response, freer revving
– Improved enhanced acoustics with no drone, resonation or vibration
– Model specific tuned sound still in keeping with the Marque
– Weight reduction

PERFORMANCE – Made in Germany
up to 18KW(25PS) more power and 45Nm additional torque
Ideal base performance exhaust for additional engine upgrades.

Fitting Service:
Benefit from our fitting service in our modern and hightech workshop. A team of qualified, experienced technicians fulfill all your needs with due skill, care and diligence.
