CARGRAPHIC Motorsport Exhaust System RACING / FIA

POA
CARGRAPHIC Motorsport Exhaust System RACING / FIA
Cylinder Head-Back with ID 39, 42, 45 or 50 Racing manifolds and dual flow AQ centre silencer with modular rear silencers and tailpipe variations for
– Porsche 911
– Porsche 964
– Porsche 993
Product description:

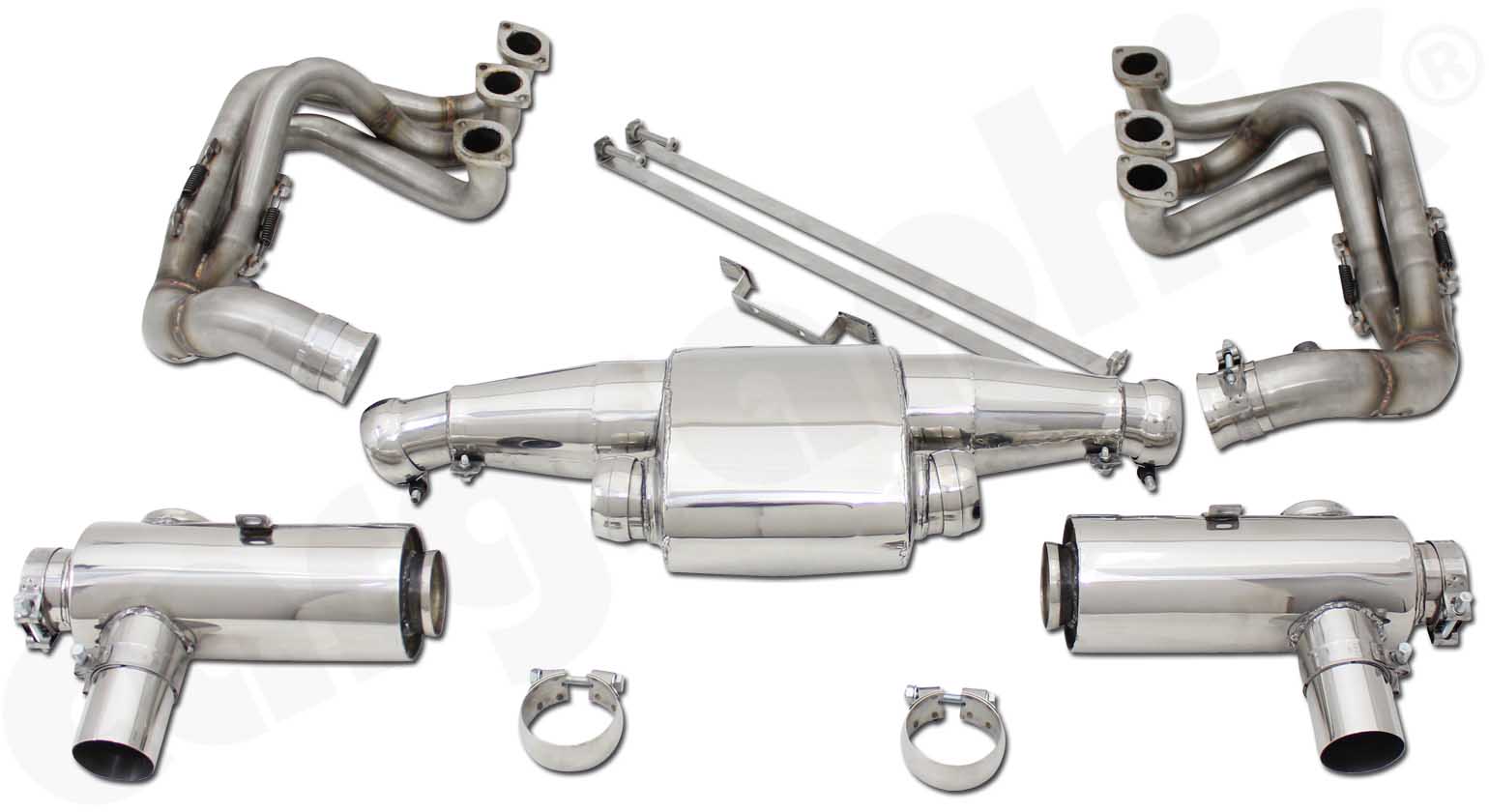

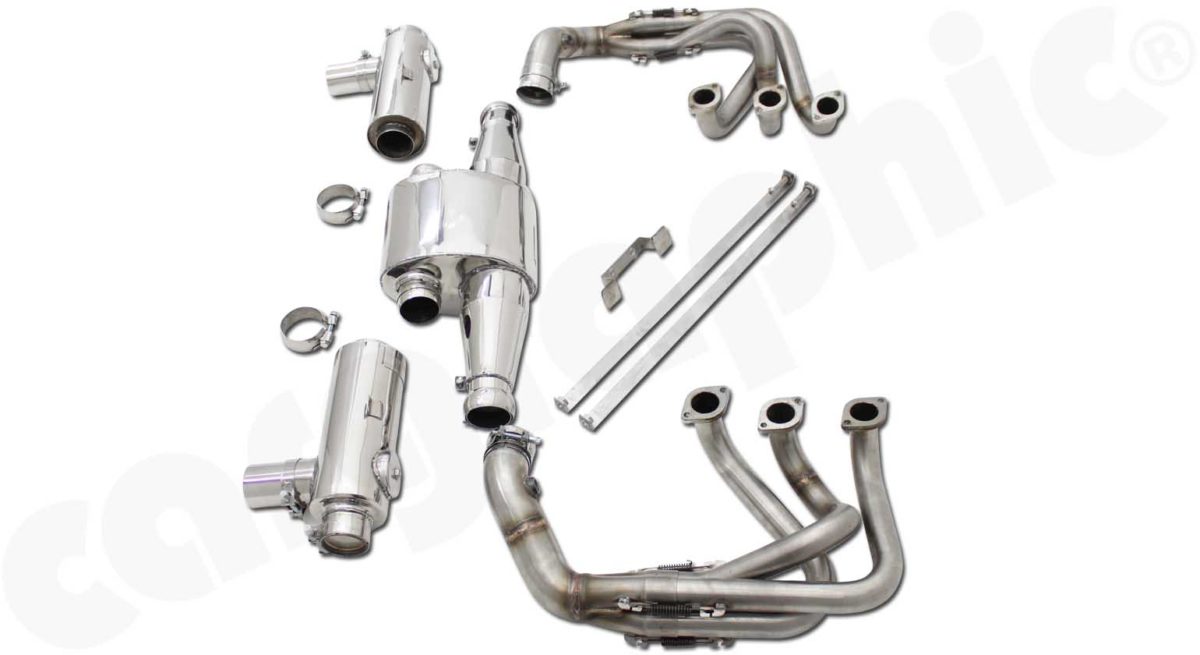

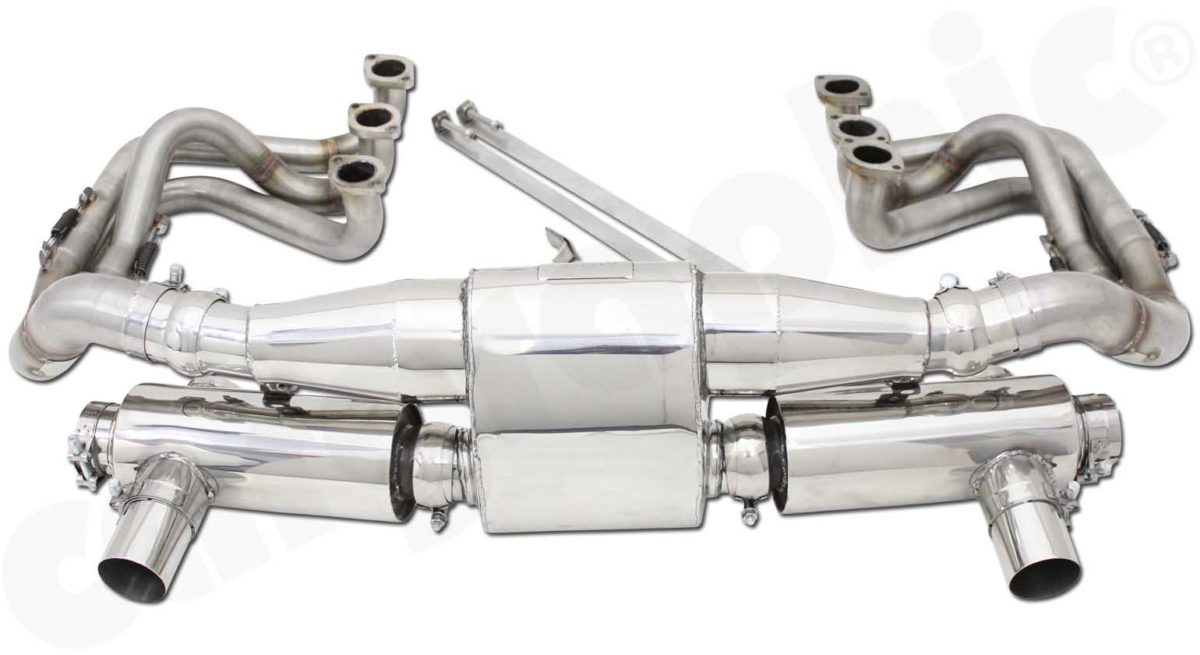

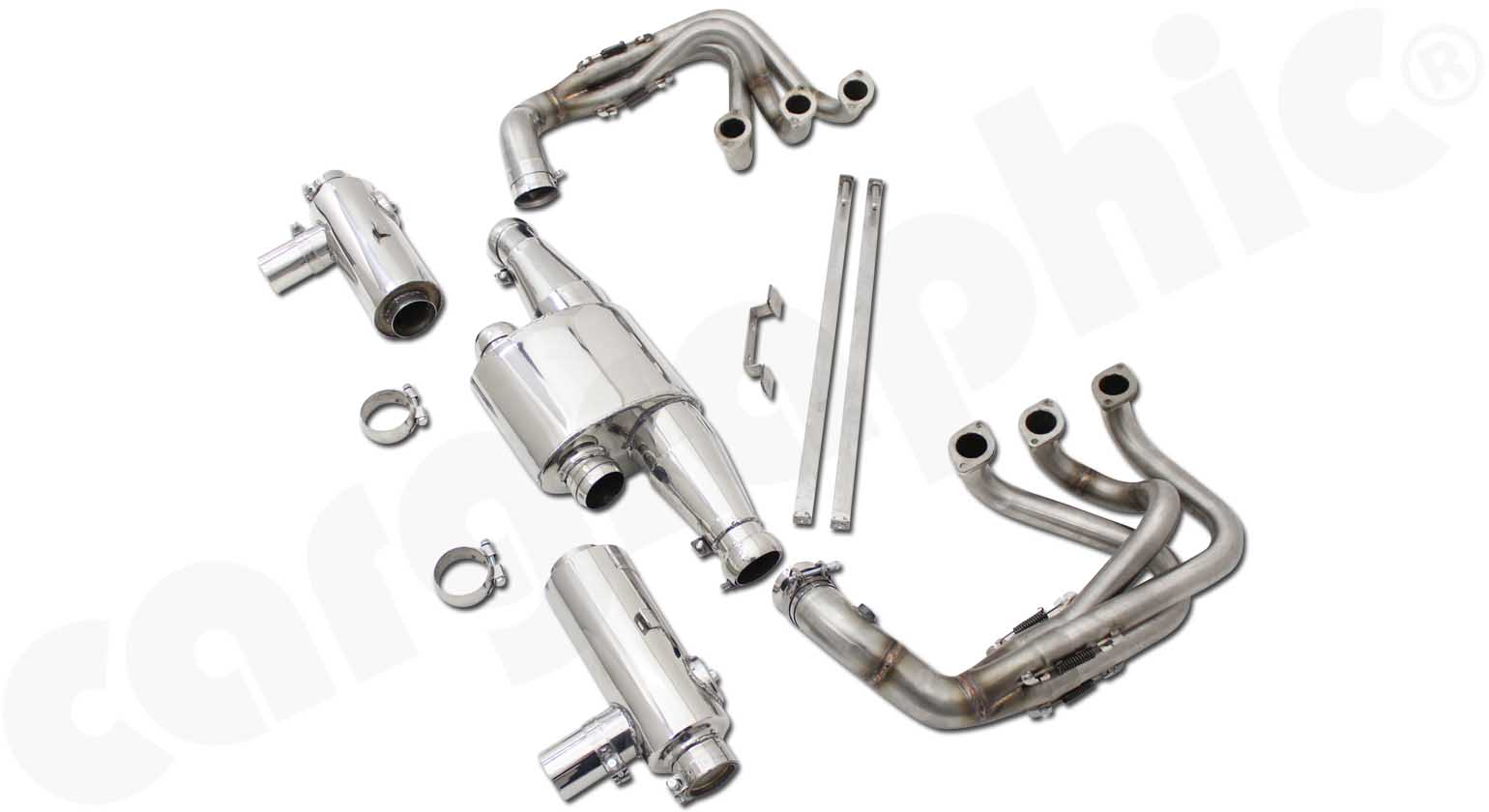

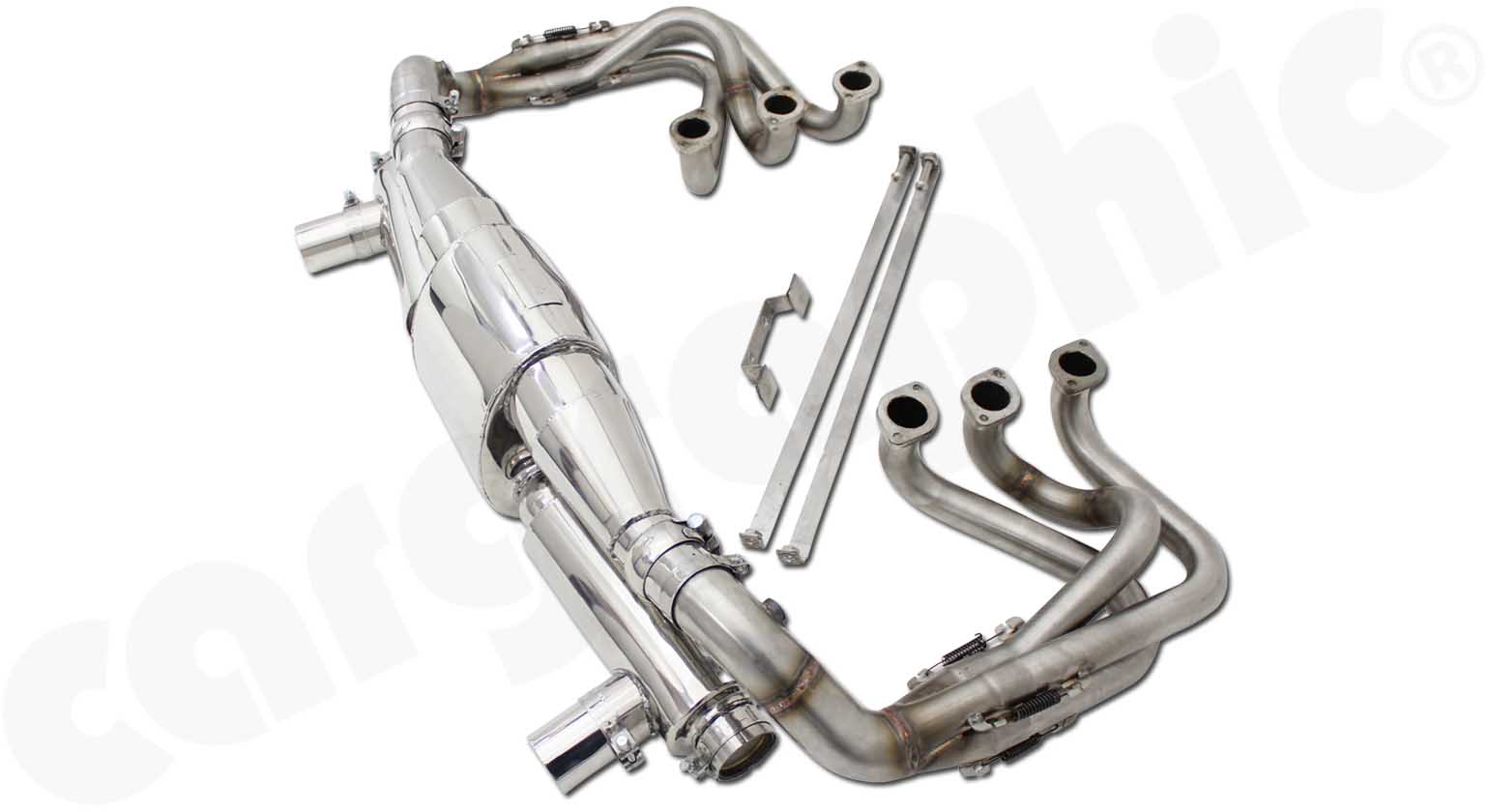

CARGRAPHIC Cylinder Head-Back Motorsport System RACING / FIA

Consisting of:
CARGRAPHIC ID39, 42, 45 or 50 Racing manifolds with optionally 39mm, 42mm, 45mm or 50mm ID primaries as single primary pipes sleeve fitted in spring loaded, spliced collector boxes with 2.5" / 63,50mm secondaries.
CARGRAPHIC centre silencer with ID 61mm Aeroquip flanges
– with modular final silencers. Perforation inserts / DB reducers to be screwed in.
– Tailpipe variations:
2x CARGRAPHIC sport tailpipes, Ø63,50mm with a gap of 740mm (RSR-Look) CTC
2x CARGRAPHIC sport tailpipes, Ø63,50mm LH / RH F- / G-model position
– Fitting kit including bracket and bandstraps

The system is delivered without catalytic converters

RACING VERSION – MOTORSPORT ONLY

Fits for:
– Porsche 911
– Porsche 964
– Porsche 993

Features:

– Absorptive silencer design with CNC mandrel-bent pipework
Fully made from T-304L lightweight stainless steel
High performance components, dyno tested
– Olive-/ Bandclamp- and sleeve connections enable easy installation and perfect adjustment
– Collector boxes positioned max to the outside to achieve max possible clearance to valve covers, because of heat radiation.
– Reinforced laser-cut brackets
– Reduced backpressure due to freer flowing
– Reduced operating temperature
Maximized performance
Improved throttle response, freer revving
– Weight reduction

PERFORMANCE – Made in Germany
up to 18KW(25PS) more power and 45Nm additional torque
Ideal base performance exhaust for additional engine upgrades.

Fitting Service:

Benefit from our fitting service in our modern and hightech workshop. A team of qualified, experienced technicians fulfill all your needs with due skill, care and diligence.

If you would like more information about this part please click below or call us on 01293 537 911.

Part Enquiry

Product description:
CARGRAPHIC Cylinder Head-Back Motorsport System RACING / FIA

Consisting of:
CARGRAPHIC ID39, 42, 45 or 50 Racing manifolds with optionally 39mm, 42mm, 45mm or 50mm ID primaries as single primary pipes sleeve fitted in spring loaded, spliced collector boxes with 2.5" / 63,50mm secondaries.
CARGRAPHIC centre silencer with ID 61mm Aeroquip flanges
– with modular final silencers. Perforation inserts / DB reducers to be screwed in.
– Tailpipe variations:
2x CARGRAPHIC sport tailpipes, Ø63,50mm with a gap of 740mm (RSR-Look) CTC
2x CARGRAPHIC sport tailpipes, Ø63,50mm LH / RH F- / G-model position
– Fitting kit including bracket and bandstraps

The system is delivered without catalytic converters

RACING VERSION – MOTORSPORT ONLY

Fits for:
– Porsche 911
– Porsche 964
– Porsche 993

Features:

– Absorptive silencer design with CNC mandrel-bent pipework
Fully made from T-304L lightweight stainless steel
High performance components, dyno tested
– Olive-/ Bandclamp- and sleeve connections enable easy installation and perfect adjustment
– Collector boxes positioned max to the outside to achieve max possible clearance to valve covers, because of heat radiation.
– Reinforced laser-cut brackets
– Reduced backpressure due to freer flowing
– Reduced operating temperature
Maximized performance
Improved throttle response, freer revving
– Weight reduction

PERFORMANCE – Made in Germany
up to 18KW(25PS) more power and 45Nm additional torque
Ideal base performance exhaust for additional engine upgrades.

Fitting Service:

Benefit from our fitting service in our modern and hightech workshop. A team of qualified, experienced technicians fulfill all your needs with due skill, care and diligence.
